Slitters | Sheet metal slitters | slitting machines

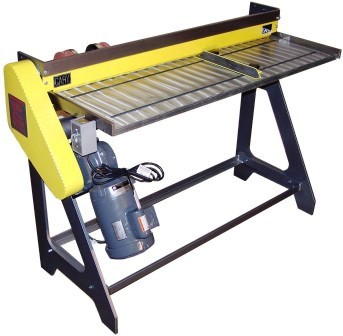

Gary Model 3350DX Superduty Deluxe Sheet Slitter

Gary Machinery Model 3350 DX Super Duty Deluxe Sheet Slitter

The Superduty Deluxe 48" Sheet slitters offers many extra features for this multi-cutting equipment. To better serve the processor requiring a wider range of capacities, the Superduty Deluxe comes with a built in entry guide, stripper rings and intergraded scate to help the operator in setting up the cuts. It also has a cleaner, more modern look of the end housings with the legs integrated into them. The 335DX "SuperDuty Deluxe" is equipped with a 3/4 HP motor with standard 110 V plug-in services to suppley the torque required to cut a wide range of material thickness (16 thru 30 gauge) at a standard operating speed of 60 FPM. Two sets of tooling and stripper rings come standard on this slitter. The stripper rings are beneficial for light gaugle pre painted material to prevent marking the surface.

Standard features :

  • 3" Diameter cold - roll turned, ground and polished shafts mounted in dual wall ball bearings
  • bearings are lubricated for life series
  • gauge mounting on each side permits left or right hand operation
  • end frames have legs integrated into them for a more stable machine
  • the exclusive GARY torsion tube assembly makes it a lightweight rugged unit
  • heavy gauge steel table with a slotted top and quick-adjust entry guide
  • slitter knives are proven GARY "quickset" design manufactured from toolsteel
  • knives are "reversible", intervals between sharpening is double that of a single edge knives
  • 2 sets of standard 3" , X 5" X 3/4" wide high-Carbon tooling is included
  • 60 FPM standard operating speed
  • Heavy duty roller chain drive powered by a 3/4 HP gearmotor with thermal overload
  • stripper rings to prevent marking on pre-Painted materials
  • standard 110/220 V - 1PH

Contact us about any of these Gary Slitters
