Roll Formers | Ductformer

Ductformer's machines are Made in the USA

Ductformer Rollformers are built in St. Louis, Missouri, U.S.A. alongside the Automated Metal Fabrication Systems of Custom Rollform Products Inc. The design engineers and technicians building Ductformer’s Rollforming Machines have many decades of experience with Duct fabrication machines, industrial rollforming (custom designed rollformers), metal bending, steel coil processing, part assembly and packaging machinery automation. Ductformer takes pride in bringing new innovative manufacturing ideas with industrial quality standards to the Duct Fabrication Industry.

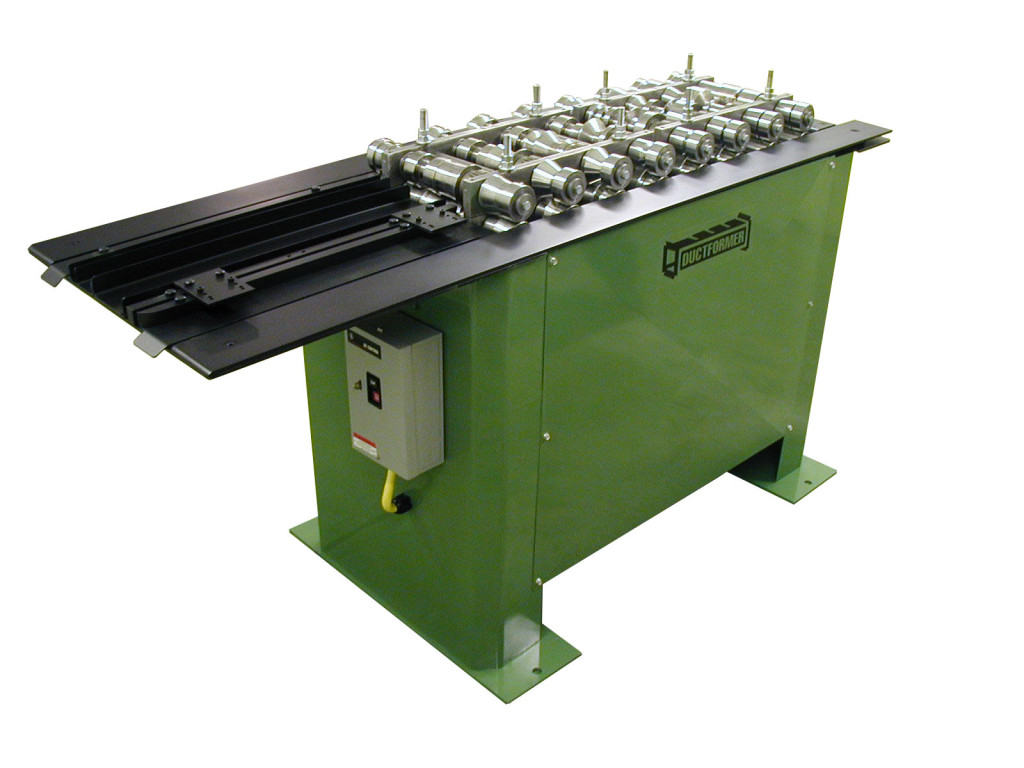

CR8-SDC Rollformer



Ductformer’s CR8-SDC Rollformer has both versatility and flexibility. Altogether the Multiple Roll Tooling configurations that are available on the CR8 including Slip and Drive Cleats, Male and Female Snap-Lock, Pittsburgh, Acme Seams, Tri-Plex, and Standing Seam.

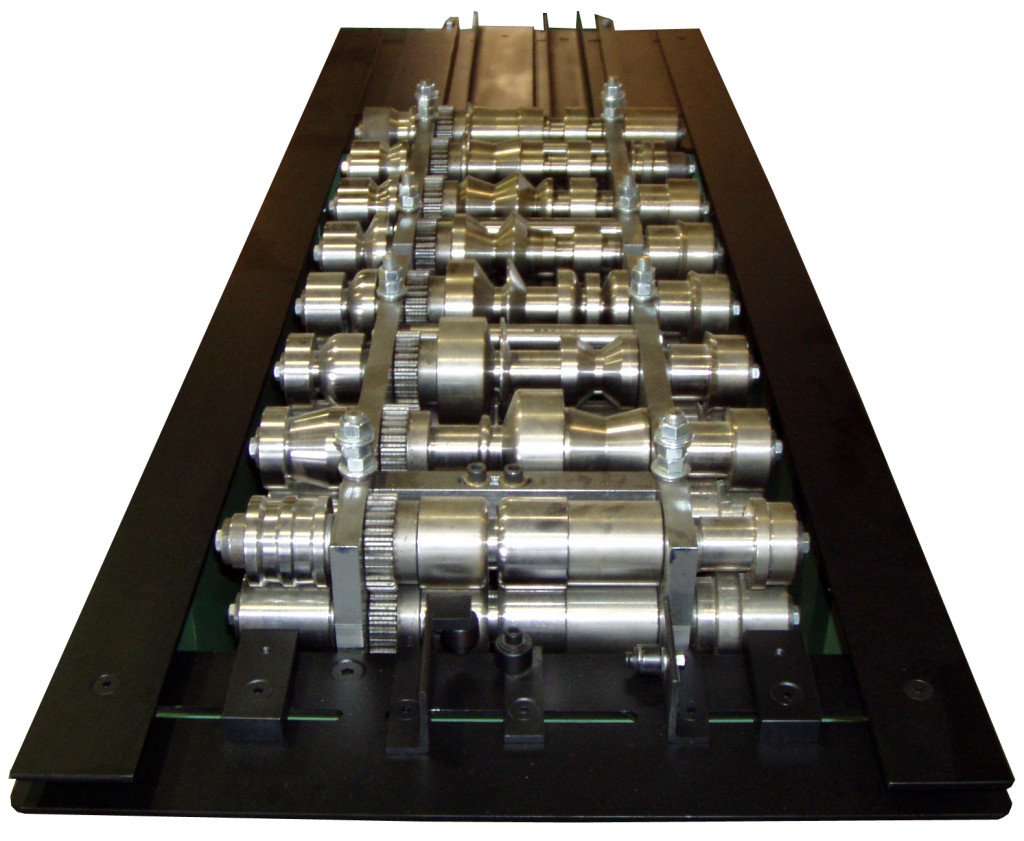

The CR8-SDC Rollformer produces Slip and Drive Cleats on the inboard Rolls. Two (2) Auxiliary Roll Sets are available for the outboard Roll Shaft extensions. Optional Rolls include Pittsburgh and Male / Female Snap Lock, Acme Rolls, and Tri-Plex. Precision craftsmanship and materials with direct drive oil bath gear reduction make the CR8 the quietest machine in it’s class! See the difference, hear the difference!







You will notice the quality of the Ductformer Rollformer as soon as you turn the power on. The quietness while running reveals the machines precision workmanship and superior design will guarantee years of dependable service. The sealed Bearings are protected from contamination eliminating lubrication or maintenance. The Oil Bath Gear Reduction Transmission Unit (U.S. brand) is both quiet and smooth running. Just like the other Ductformer Rollformers, all of the CR8’s tooling options are made in our own machine shop on new CNC machines.



Flat “S” and/or Drive Cleat Rollformer capable of two (2) Roll Sets Inboard and two (2) Roll Sets of Optional Outboard Rolls

View Machine Brouchure Here

Return To TOP



CR8-CF Cleat Former



Ductformer’s Model CR8-CF forms the Drive Cleat Flange on the end of the Duct. This is in a single pass through operation for use with both L-Shape or Full Wrapper Duct. All our standard Rollformers, the System features an all gear drive, direct oil bath gear reduction and sealed (lube for life) bearings to provide the smoothest, quietest Rollformer on the market to date. The Roll Tooling forms the 180° Drive Cleat hems on one edge of the pre-notched sheet metal. As the pre-cut Duct passes through the Model CR8-CF, the System senses the notch to form the Cleat Edges for L-shape and Full Wrapper Duct. The Small Parts Feed for smaller Duct or Fittings comes standard on the Drive Cleat Edge Former. Parts are clamped onto the Roller Guide and fed through the Rollformer.







You will notice the quality of the CR8-CF Cleat Edge Former as soon as you turn the power on. The quietness while running reveals the precision workmanship and superior design to provide years of dependable service. Just like all Ductformer products, everything is American made at our plant in St. Louis, Missouri. Moreover, we back up everything we sell with the quality service you deserve.



View Machine Brouchure Here

Return To TOP

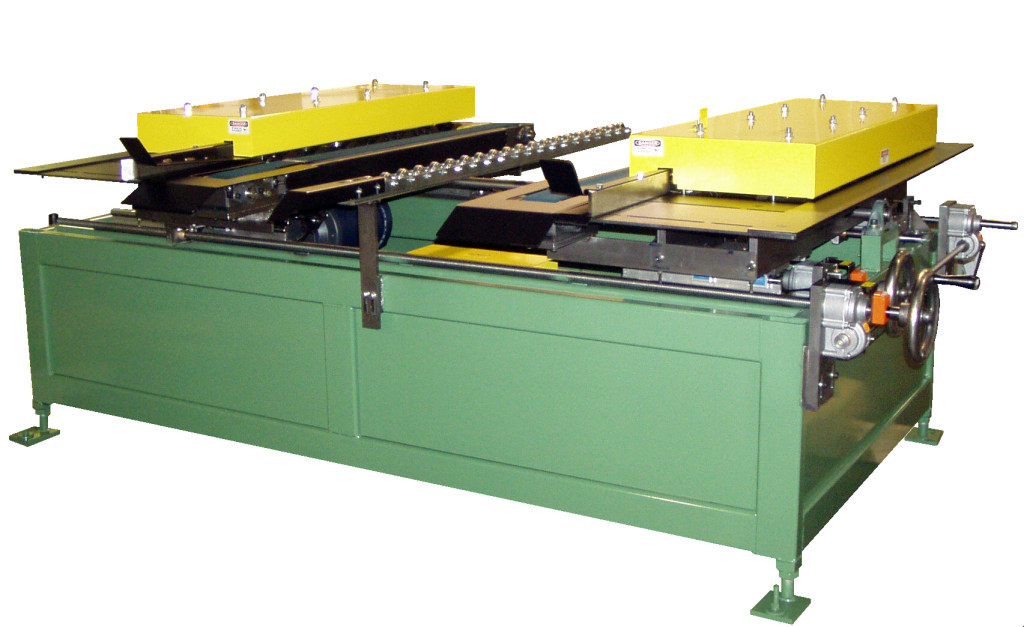

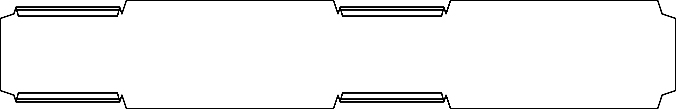

CR8-CF-DH Dual Head Cleat Former



In brief Ductformer’s Model CR8-CF-DH Dual Head Cleat Former forms the Drive Cleat Flange on both ends of the Duct in a single pass through operation. The System overall can be incorporated into any existing Duct Fabrication System to produce 4’ and 5’ L-Shape or Full Wrapper Duct.

As can be seen the quality and integrity of all our standard Rollformers, the System features an all gear drive, direct oil bath gear reduction, and sealed (lube for life) bearings to provide the smoothest, quietest Rollformer on the market to date. In summary, the unit consist of two (2) Rollform Head Assemblies mounted parallel side-by-side and positioned from Handwheel Leadscrews. The Roll Tooling will form the 180° Drive Cleat hems on both edges of the pre-notched sheet metal. Hence while the pre-cut Duct passes through the Cleat Edge Former, the System senses the notch to form the Cleat Edges for L-shape and Full Wrapper Duct.



For Systems using combination TDFC and “S” Slip and Drive Cleat operations, the Rollformer features By-Pass Conveyors. As can be seen by using the Handwheels provided, the Form Rolls open wider and the part can be by-passed or transferred through the By-Pass Conveyor then to the next form sequence.

You will notice the quality of the CR8-CF Dual Head Cleat Edge Former as soon as you turn the power on. The quietness while running reveals the precision workmanship and superior design to provide years of dependable service. Just like all Ductformer products, everything is, above all, American Made at our plant in St. Louis, Missouri. Moreover, we back up everything we sell with the quality and service you deserve.

Features

-Inline System for Drive Cleat Edge forming
-Forms L-Shape and Full Wrapper Ducts
-8 Station Rollformer
-18-26 Gauge capacity
-Air Actuated
-50-75 FPM line speeds available
-4’ to 5’, 6’ coil widths available
-Forms 180º Drive Cleat Hems on Pre-Notched Material for L-Shape and Full Wrapper Duct.
-Designed for Left or Right Hand Systems
-Digital head position indicators, solid shaft coupled
-Simple, reliable conventional rollforming design



12 & 14 Station TDFC Dual Head Rollformer For Ductline



Ductformer’s Dual Head TDFC Rollformer is designed for installation in existing duct coil lines or can be used as a free standing unit. The rollformer is designed to accept and form the TDFC (F or C-Style) flange down both edges of the 18 – 26 gauge blank. Our robust yet simplistic design makes the TDFC Rollformer the work horse of any shop for many years to come.



Features

-12 Forming Stations
-All Welded Frame Construction
-All Gear Drive
-Self-Adjusting Full Gauge Range
-Oil Bath Gear Reducer
-Heavy Duty Spindle Shafts
-Anti-Friction Roller Bearings
-Universal Left/Right Hand Design

Specifications

Width Variables………….36” to 60”
Gauge Range…………..18 – 26 Ga.
Length……………………………105”
Pass line Height………………….36”
Width……………………………..119”
Motor…………………………..10 Hp
Electrical…………..3 Ph 230/460 V
Shipping Weight…………4,300 lbs.
Line Speed…………………..60 fpm



CR8 Auto Feed Rollform System

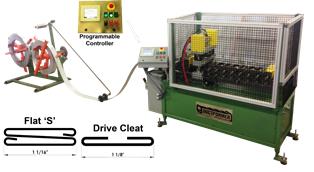

The Automated CR8-SDC Auto Feed Rollform System is designed to feed and form the Flat ’S’ and Drive Cleats on the inboard Rolls directly from coil stock. The Automated System consists of a Dual Station Coil Cradle, Flying Shear Cut Off Die, and Pre-Tooled Rollformer to form either Flat ‘S’ or Drive Cleat sections in a single pass through operation. The Pre-Tooled Rollformer consist of one (1) Set of Hardened and Polished Steel Roller Dies to form the Drive Cleat Profile and One (1) Set of Hardened and Polished Steel Roller Dies to form the Flat ‘S’ Profile in a single pass through operation. Rolls will form the section from 22 – 26 gauge galvanized mild steel.

A User Friendly / Programmable Controller will sequence the strip feed and cycle the Cut Off Die based on simple batch quantity and part length inputs. Precision craftsmanship and materials with direct drive oil bath gear reduction make the CR8 the quietest machine in it’s class! See the difference, hear the difference!



Features

8 Station Rollformer
All Gear Drive (“off the shelf”)
Self-adjusting Full Gauge Range
Oil Bath Gear reduction transmission
Hardened tool steel Entrance Guides
Hardened & Polished Rolls
Maintenance free Anti-friction Sealed Roll Bearings
Pneumatic Flying Cut-Off

Specifications

Gauge Range………………………..22-26 Ga. Length………………………………………225” Passline Height……………………………..35” Width………………………………………….39” Motor………………………………………..5 Hp Voltage……………………………….220 / 440 Electrical………………………3 Phase / 60Hz Shipping Weight……………….2,200 Pounds Line Speed……………………………..24 FPM

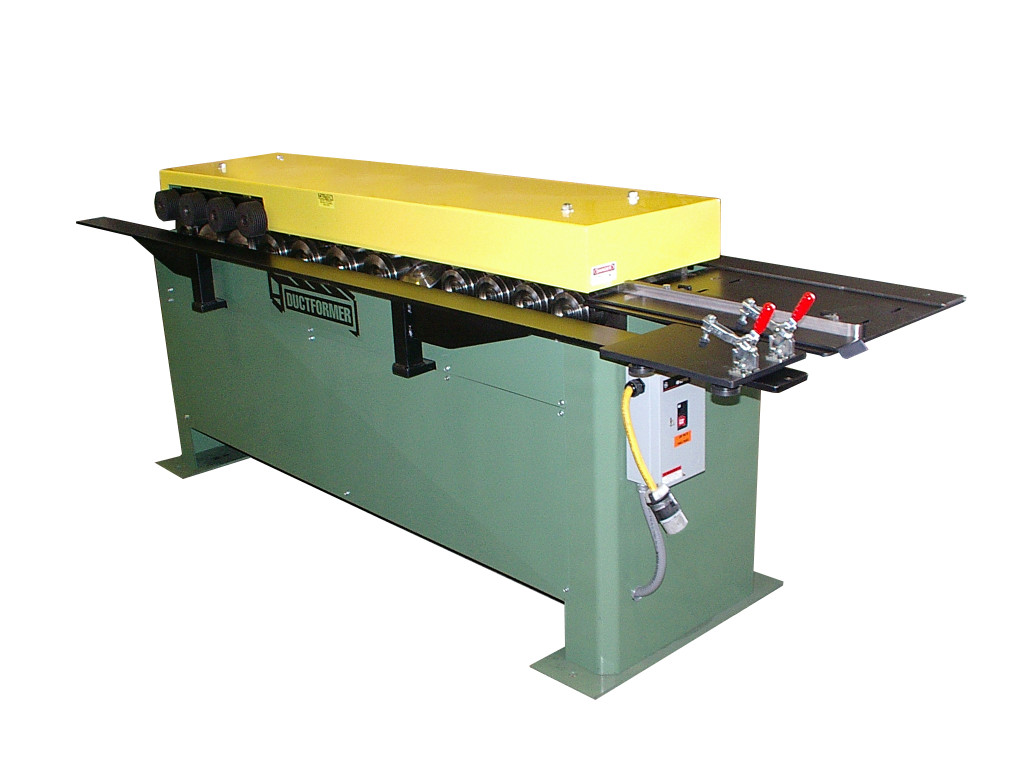

CR12-TDFC Rollformer



Ductformer’s CR12-TDFC produces the C-Style Transverse Duct Flange Connector direct onto the ends of the duct. This saves time and money by eliminating secondary fastening of Quick Duct and other bolt on applications as a result.

The TDFC Flange application has proven to be the most cost effective method to construct and install commercial rectangular ductwork. The C-Style Flange provides the extra strength and rigidity to sustain the Air Duct System.

The Ductformer TDFC Rollformer features an All Gear Drive, Oil Bath Reducer, heavy duty spindles and quality Anti-friction Sealed Roller Bearings to provide years of maintenance free service. For this reason you will discover how quiet and smooth the Ductformer performs. The quality of craftsmanship and superior design puts Ductformer years ahead of their competition.



The heavy duty all steel frame construction features a full 24” Infeed Table with through hardened tool steel Infeed Guides. We make the Roll Tooling on our CNC Turning Centers. This helps ensure every machine produces the same high quality formed profile you expect from Ductformer.

Each Ductformer TDFC comes with our Small Parts Feed Guide. Parts and fittings are clamped to a roller carriage to firmly hold the part as it passes through the Form Rolls. As with all Ductformer products, this unit is built in America. Moreover, we back up everything we sell with the quality service you deserve.





CR14-TDFC Rollformer



Ductformer’s CR14-TDFC produces the F-Style Transverse Duct Flange Connector direct onto the ends of the duct. This saves time and money by eliminating secondary fastening of Quick Duct and other bolt on applications as a result.

The TDFC Flange application has proven to be the most cost effective method to construct and install commercial rectangular ductwork. The C-Style Flange provides the extra strength and rigidity to sustain the Air Duct System.

The Ductformer TDFC Rollformer features an All Gear Drive, Oil Bath Reducer, heavy duty spindles and quality Anti-friction Sealed Roller Bearings to provide years of maintenance free service. For this reason you will discover how quiet and smooth the Ductformer performs. The quality of craftsmanship and superior design puts Ductformer years ahead of their competition.



The heavy duty all steel frame construction features a full 24” Infeed Table with through hardened tool steel Infeed Guides. We make the Roll Tooling on our CNC Turning Centers. This helps ensure every machine produces the same high quality formed profile you expect from Ductformer.

Each Ductformer TDFC comes with our Small Parts Feed Guide. Parts and fittings are clamped to a roller carriage to firmly hold the part as it passes through the Form Rolls. As with all Ductformer products, this unit is built in America. Moreover, we back up everything we sell with the quality service you deserve.
