powered beading and crimping machine

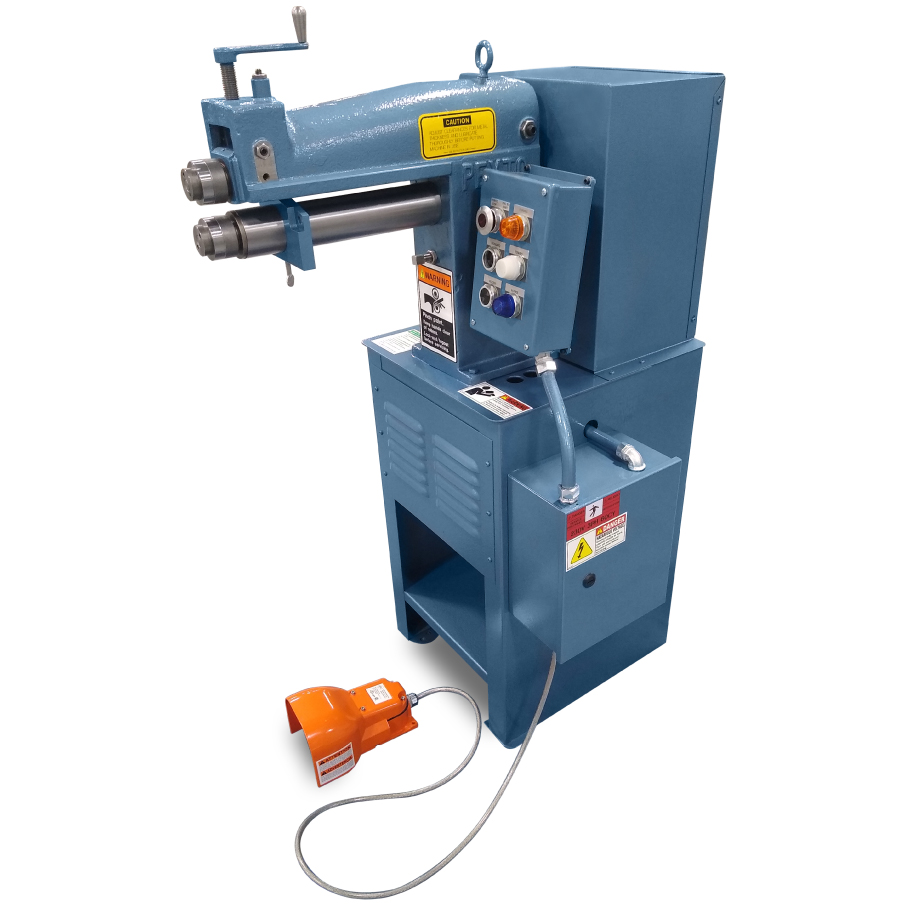

Roper Whitney No. 3617 Beader/Crimper

Roper Whitney Model # 3617 Beader / Crimper Machine - 18 gauge

The Roper Whitney Model no. 3617 Beader Crimper is a versatile beading/crimping machine designed for deep throat (up to 13") beading, crimping, and other roll operations on up to 18 gauge material. Back-geared, with steel horn, bronze bushed bearing and one-piece frame. Roper Whitney model no. 3617 beader / crimper is mounted on a floor stand with adjustable motor mount, "V" belt drive, and 3/4 h.p. geared head motor. Roper Whitney 3617 beader crimper - Unit includes gauges and spacing collars for all operations except flanging. Rolls ordered separately.

Specifications for the Roper Whitney Beading Crimping Machine model no. 3617 :

  • Capacity 18 Ga.
  • Depth of throat 13 in.
  • Distance between centers 3 in.
  • Ratio gearing 3 1/2:1
  • Roll speed 40 rpm
  • Motor (230 or 460 V, 3 ph) 3/4 h.p.

Contact us about the Roper Whitney rotary machine

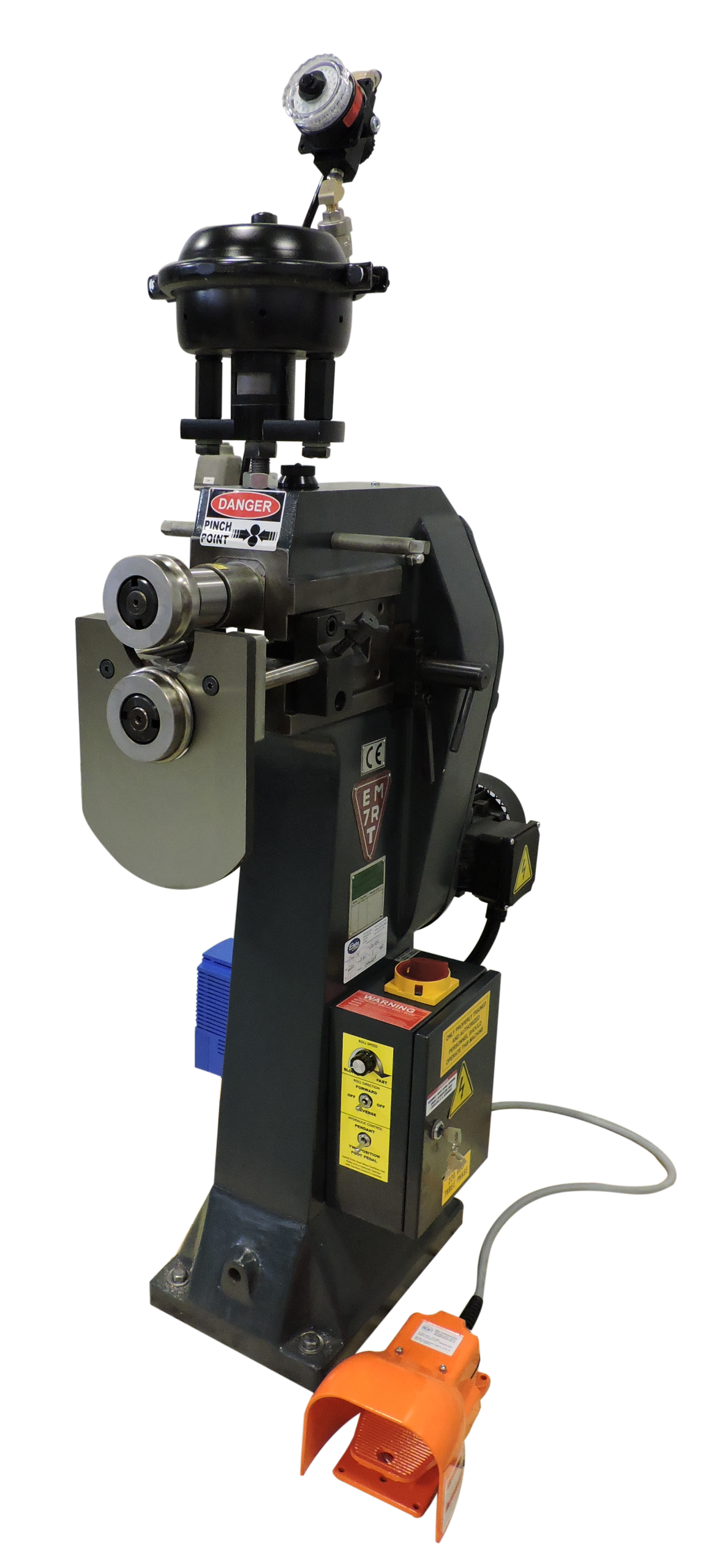

Ductformer Rotary Machine

Ductformer Rotary machine

Ductformer Rotary Machine Beads, Crimps, Slits and Flanges. Model Rollformer DFRF-1410 has an automatic feed and engage feature to leave both hands free to handle parts. This Rotary machine will form either round or flat sheets and has foot pedal controls clamping force. This Ductformer rotary machine has special safetly features including the foot operation for hands free operation and forming rolls will stop and retract automatically to load a new part. This Ductformer model can be order hydraulically or phneumatically actuated.

Ductformer Model DFRF-1410 Specifications :

  • 1.25 " diameter roll shafts
  • heavy duty roller bearings
  • variable speed reversible motor drive
  • 1 hP , 110V electric
  • forward / reverse capabilities
  • 10" throat - 14 gauge capacity
  • full selection of rolls
  • full hardened tool steel back plate
  • maintains maximum torque at lower speeds

Contact us about the Ductformer rotary machine

Tennsmith Powered Rotary Machine

Tennsmith's PR-16 Power Rotary is a versatile machine capable of forming numerous applications up to 16-gauge mild steel. Standard features include variable speed control, heavy cast body with steel body stand. A 1/2-hp gear motor provides smooth operation. The forming pressure is controlled by a crank on the top of the frame on the PR16 Base Machine; an optional hydraulic powered forming pressure unit is available on the PR16-H.

Single beading, Crimping, Combination Bead/Crimp Rolls, Ogee Beading, Flattening, Elbow Edging, Offset Rolls, Flange Rolls, Turning, Wiring, and Burring are available.

Rolls are ordered separately for this unit.

Maximum Forming Capacity, Mild Steel-------------------------16 gauge/1,6mm
Maximum Forming Capacity, Stainless Steel------------------20 gauge/1,0mm
Maximum Throat Depth-------------------------------------------10 in/254mm
Distance, shaft center to center--------------------------------2.5 in/63.5mm
Gear Ratio-----------------------------------------------------------3 : 1
Working Speed Variable------------------------------------------3 to 45 rpm
Motor (Standard)---------------------------------------------------230/460v, 3-phase, 60Hz ½ hp
Shipping Weight----------------------------------------------------350 lbs /159 kg

*Can Be
Wired for 460 Volt, Single Phase, 60 HZ Electrics For An Aditional Fee.

* Also Available: Model PR16-H Hydraulic Depth System


Contact Us About This Tennsmith Power Rotary Machine.
