Tennsmith Powered Rotary Machines | Powered Rotary Sheet Metal Machines

Tennsmith Powered Rotary Machine

Tennsmith's PR-16 Power Rotary is a versatile machine capable of forming numerous applications up to 16-gauge mild steel. Standard features include variable speed control, heavy cast body with steel body stand. A 1/2-hp gear motor provides smooth operation. The forming pressure is controlled by a crank on the top of the frame on the PR16 Base Machine; an optional hydraulic powered forming pressure unit is available on the PR16-H.

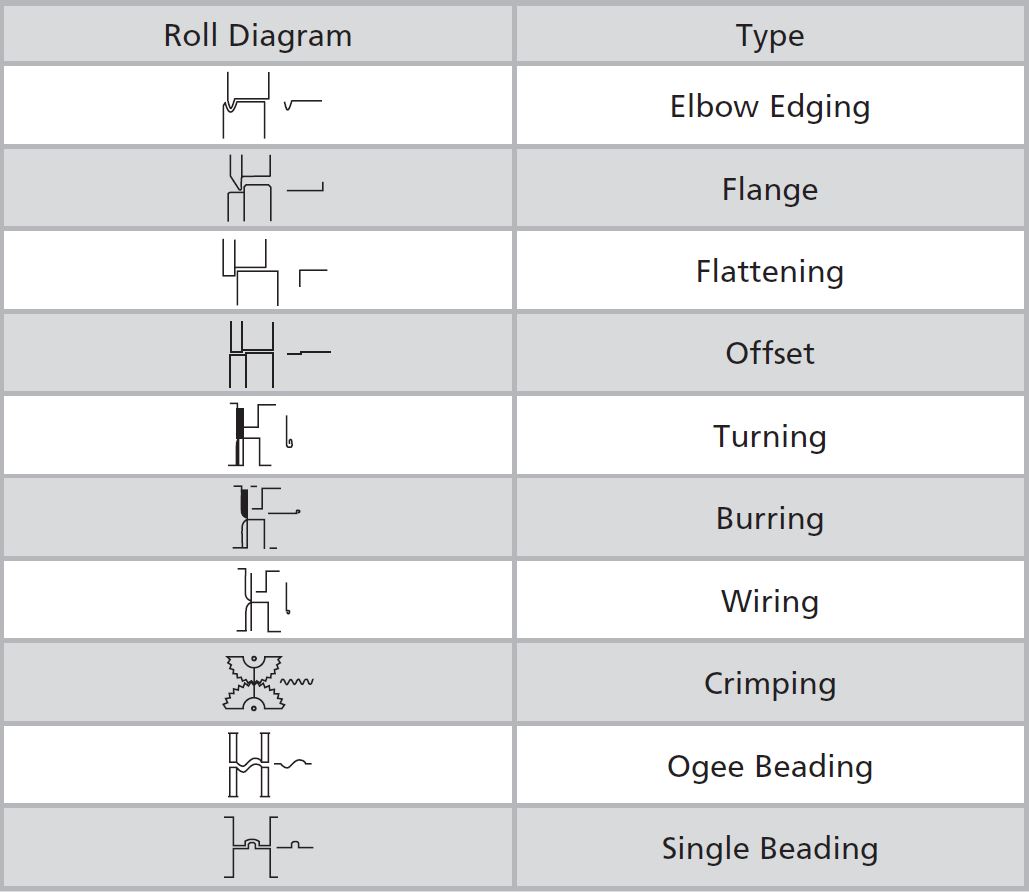

Single beading, Crimping, Combination Bead/Crimp Rolls, Ogee Beading, Flattening, Elbow Edging, Offset Rolls, Flange Rolls, Turning, Wiring, and Burring are available.

Rolls are ordered separately for this unit.

Specifications:
Maximum Forming Capacity, Mild Steel-------------------------16 gauge/1,6mm
Maximum Forming Capacity, Stainless Steel------------------20 gauge/1,0mm
Maximum Throat Depth-------------------------------------------10 in/254mm
Distance, shaft center to center--------------------------------2.5 in/63.5mm
Gear Ratio-----------------------------------------------------------3 : 1
Working Speed Variable------------------------------------------3 to 45 rpm
Motor (Standard)---------------------------------------------------230/460v, 3-phase, 60Hz ½ hp
Shipping Weight----------------------------------------------------350 lbs /159 kg

*Can Be
Wired for 460 Volt, Single Phase, 60 HZ Electrics For An Aditional Fee.

* Also Available: Model PR16-H Hydraulic Depth System



Contact Us About This Tennsmith Power Rotary Machine.
