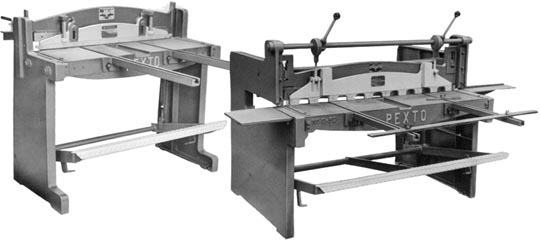

Roper Whitney No. 137 and 152 Shears

Roper Whitney Pexto foot squaring shears are the industry's most accurate sheet metal shears. These stomp shears are easy to operate and offer precise shearing, long life and dependability. Shatter-proof transparent finger guards are among the safety features of the Roper Pexto Foot shear. All of these stomp shears are provided with precise gauging and holddowns for sheet metal cutting accuracy.

Specifications of the Roper Whitney Pexto Shears:

• Maximum Rated Capacity :16 gauge mild steel
• Built to machine tool standards
• Triple-action shearing

Roper Whitney No. 137 and No. 152 shears offer triple-action shearing which includes relief on both edges of both the fixed and moving blades. It eliminates blade-to-blade friction, provides "bite" to eliminate sheet movement under shearing stress and produces double penetration in the cutting action. All contribute to easier operation. The Roper Whitney Pexto Shear model No. 137 will accommodate a 36" sheet, the Roper Whitney Pexto Shear model No. 152 will handle a 52" sheet.

The Roper Whitney Pexto No. G52 shear incorporates a gap-in-housing feature which permits slitting a sheet of any length (by successive cuts) up to 18 inches wide. It's gauging package is similar to the No. 137 and No. 152 shears, but also has an adjustable side slitting gauge. It may also be used for standard shearing of sheets up to 52 inches long. The Roper Whitney Model G52 shearing machine includes a lever actuated holdout, finger guard and treadle stops.

Return to TOP

Roper Whitney PH 452 and PH 52 Power Squaring Shears

Roper Whitney power squaring shears provide many choices of features designed for shearing efficiency and shearing accuracy to equal the demand of present day productivity. Both of the hydraulically operated Roper Whitney (PH452 and PH52) shearing models have built-in ruggedness that will make them last for years of normal use. Within the many sheet metal shear models is the capability of shearing up to 12 gauge mild steel and up to 6 foot sheet lengths. Some Roper Whitney shears are designed for use where space is a consideration. All of the Roper Whitney Hydraulic powered squaring shears include precise gauging and appropriate safety guarding.

Specifications of the Roper Whitney Models PH452 and PH52 power shears:

• Max. Rated Capacity - 16 gauge (mild steel)
• 52" Shear Lengths

Compact, fully-integrated, hydraulically powered shearing units. These shears are ideal for many light gauge shearing applications. Equipped with big shear operating controls. Fast, smooth, oil - cushioned action. Both moving and fixed blades are shearing blades of Hi-Speed steel. One piece cast shear bed is recessed for easy sheet handling. Standard equipment includes back, front, and side gauges, bevel gauges, front arms and transportation finger guard. Bed is machined for optional side extension squaring gauge.

Other Features of the Roper Whitney power squaring shears include:

• Fully enclosed control panel, with magnetic starter, selector switch and relays
• Single or continuous stroke operation.( Continuous on PH52 )
• Full Length 45 Stokes per Minute
• 3/4 Length 60 Stokes per Minute
• 1/2 Length 75 Stokes per Minute
• 1/4 Length 100 Stokes per Minute
• Heavy duty foot switch. If released anywhere in the stroke, crosshead returns to "up" position.
• Pressure relief valve to prevent overloading.
• Electric solenoid hydraulic valving for instantaneous response.
• Dial stroke control - accessible adjustment with stroke length indicator.
• Hydraulic power uniformly applied through double-acting cylinders.

Return to TOP

Roper Whitney 10M10 Mechanical Shears

Standard Features of the Roper Whitney 10M10 Mechanical Shear:

• Rugged Welded Construction
• Single or Continuous Cycle or Jog
• External Blade Gap Adjustments
• 30" DRO Front Operated Powered Back Gauge
• Front Material Return System with Sheet Support
• Front Material Chute
• Combination Material Hold-Down/Finger Guard with Non-marring Urethane and Positive Spring Actuation
• High Carbon/High Chrome Long Life Tool Steel Blades
• Upper and Lower Blades Interchangeable
• Work Light Beam
• Non-Metallic Gibs
• Front Extension Arms
• Low Power Consumption and Quiet Operation
• 43 Strokes Per Minute
• Fully Guarded Safety Foot Switch
• 43" Side Extension Squaring Arm with Recessed Inch/Metric Scale


Specifications of the Roper Whitney 10M10 Mechanical Shear:

Roper Whitney 10M14 Mechanical Shear

Roper Whitney's 10M14 Mechanical shear is the latest addition to the Roper Whitney line of shears. Manufactured in the United States, the 10M14 Mechanical sheet metal shear is of rugged construction, weighs in at 5,500 pounds, and is powered by a 5 horsepower motor. The 10M14 mechanical shear produces up to 35 strokes per minute.

Standard Features of the Roper Whitney 10M14 Mechanical Shear:

Additional Options for the Roper 10M14 Mechanical Shear:

Backgauge Options For the R.W. 10M14 Mechanical Shear are : Rear Operated Manual with Precision Scale Front Operated Manual with Chain Drive and Position Counter DRO-Motor Driven with Digital Readout NC-Motor Driven with encoder Feedback, and Digital Readout with Five Preset Positions

10M14 Mechanical sheet metal shear Specifications:

Return to TOP

Contact us about ANY of these Roper Whitney Shears.
