Boschert CNC Punching Machines EL Series

Boschert Punching machine EL Series Specifications

Punching force to 60 Tons , Open C-frame construction , User-friendly graphic programming , Working ranges to 60" X 120" , Full rotation to all tools available , revo tool multi tool solution available , Multiple configurations including 2 or 3 heads , Rotation and Revo Tool , Trumpf style or 28XX tooling, Automatic repositioning standard

The EL series of CNC punching machines from Boschert are workhorse machines for any fabricator. Some of the advantages are user friendly graphic programming, high quality with low cost, wide variety of configurations and options including multiple heads, full rotation to the ram, RevoTool, engraving, forming and tapping. These Boschert Punching machines are extremely flexible including heavy duty c-frame construction allowing working of oversized sheets by turning and automatic repositioning function. The Boschert EL series punching machines come in single, twin, or tri head configurations.

Specifications for the Boschert EL series CNC Punching Machines:

Boschert Punching Machines CP Series

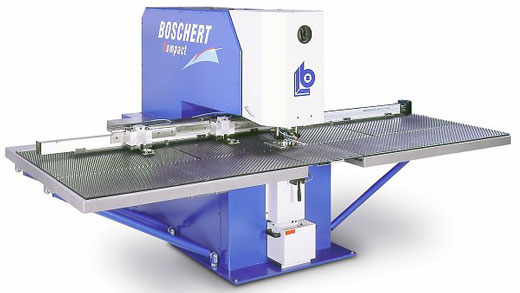

More CNC Punching for Less Money....The CP Series of CNC punching machines from Boschert Precision Machinery are the perfect machines for production, short-run, one-off or prototype work.
The Boschert CP punching series represents over 50 years experience in building high quality sheet metal machinery.


Advantages of the CNC Punching Machines by Boschert :

The Boschert Punching machines are Extremely flexible:

Boschert CNC Punching Machines Twin Series

Boschert CNC Punching Machine Twin Series

Affordable, Versatile CNC Punching

Advantages of the Boschert CNC Punching Machine - Twin Series:

Extremely flexible:

Heavy-duty C-frame construction allows working of oversized sheets by turning and automatic repositioning function

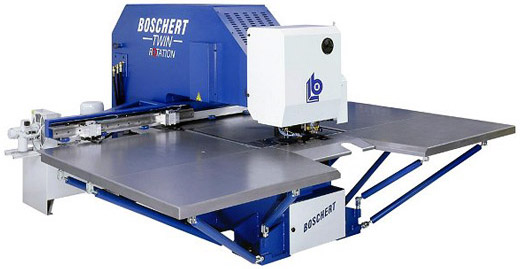

The machines of the Boschert TWIN series are equipped with TWO INDEPENDENT PUNCH HEADS. The Twin models equipped with both Rotation and Revotool can for example utilise a parting tool with 360° stepless rotation in head 1 for punching of all contours and utilise a 8-station Revotool in head 2 for punching of 8 different holes. This gives the innovative benefit of working without tool change.
The TWIN Series of CNC punching machines from Boschert Precision Machinery are workhorse machines for any fabricator.

Standard Features of the Boschert CNC Punching Machine Twin Series:

- Automatic pressurized lubrication system
- Heavy-duty tool adapter with rigid ram guidance for precise punch and die alignment
- Self-regulating overload protection
- Stripper holder and plate, die holder
- Trumpf Tooling System (28XX tooling system available at no charge)
- Rigid enclosed linear guides and ball screws with high speed bearing followers on the X and Y axes
- Automatic repositioning
- Maintenance free hydraulic drive
- Constant punching pressure
- Large, solid support tables left and right of punch head

Control Features of the Boschert CNC Punching Machine Twin Series:

- Standard PC Controller
- 3.5 floppy disk storage
- 14 full color monitor for easy viewing in all light conditions
- User-friendly soft key conversational programming
- Zoom part display
- Full range of built-in pattern functions including: circle, circular cut-out, rectangle, matrix, etc.
- Switchable inch/metric programming
- Automatic calculation of punch tonnage
- Automatic calculation of no-punch zone around material clamps
- Automatic calculation of repositioning
- Position of clamps displayed on monitor for easy set-up

Other Features for Boschert CNC Punching Machine Twin Series:

- Pneumatic material clamps
- Safety light barriers in front of machine
- Pneumatic/mechanical die locking system

Options:

- Rotation -- 360° full rotation of punching head
- RevoTool® -- 4,6 or 8 Station Multi-tool head
- Extra RevoTool® punch & die holder set
- Trumpf® Locking die holders, #1 or #2 size
- Tapping attachment
- 50 tons punching force – Only for non-rotation head
- Amada or Strippit Style tooling
- Amada or Strippit style punch adapters
- Amada or Strippit style die adapters
- Automatic tool lubrication
- 800 strokes per minute for 36 ton head
- Hydraulic stripping
- Vacuum slug removal system
- Boschert software to run on PC
- Download software for above (requires cable & amp.)
- Extra clamps (each)
- Brush or ball supports in the table

Return to TOP

Boschert CNC Punching Machines Tri Series

Boschert CNC Punching Machines Tri Series

Affordable, Versatile CNC Punching

Advantages:

· Punching force to 60 Tons
· Open C-frame construction
· User friendly graphic programming
· Working ranges to 60 x 120
· RevoTool multitool solution available
· Multiple configurations including Rotation
· Trumpf style or 28XX tooling
· Automatic Repositioning Included
· High quality with low cost
· Wide variety of configurations and options

Extremely flexible:

Heavy-duty C-frame construction allows working of oversized sheets by turning and automatic repositioning function

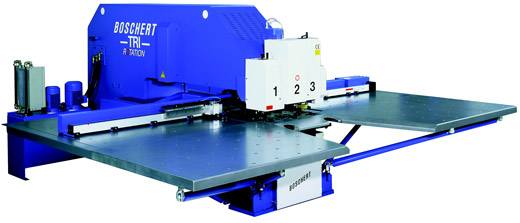

The machines of the TRI Series are quipped with THREE INDEPENDENT PUNCH HEADS. Using three tools or even a REVOTOOL enables sheet metal machining with several tools, giving the innovative benefit of no tool change.

Standard Features for Boschert CNC Punching Machines Tri Series:

- Automatic pressurized lubrication system
- Heavy-duty tool adapter with rigid ram guidance for precise punch and die alignment
- Self-regulating overload protection
- Stripper holder and plate, die holder
- Trumpf Tooling System (28XX tooling system available at no charge)
- Rigid enclosed linear guides and ball screws with high speed bearing followers on the X and Y axes
- Automatic repositioning
- Maintenance free hydraulic drive
- Constant punching pressure
- Large, solid support tables left and right of punch head

Control Features for Boschert CNC Punching Machines Tri Series:

- Standard PC Controller
- 3.5 floppy disk storage
- 14 full color monitor for easy viewing in all light conditions
- User-friendly soft key conversational programming
- Zoom part display
- Full range of built-in pattern functions including: circle, circular cut-out, rectangle, matrix, etc.
- Switchable inch/metric programming
- Automatic calculation of punch tonnage
- Automatic calculation of no-punch zone around material clamps
- Automatic calculation of repositioning
- Position of clamps displayed on monitor for easy set-up

Other Features:

- Pneumatic material clamps
- Safety light barriers in front of machine
- Pneumatic/mechanical die locking system

Options for Boschert CNC Punching Machines Tri Series:

- Rotation -- 360° full rotation of punching head
- RevoTool® -- 4,6 or 8 Station Multi-tool head
- Extra RevoTool® punch & die holder set
- Trumpf® Locking die holders, #1 or #2 size
- Tapping attachment
- 50 tons punching force – Only for non-rotation head
- Amada or Strippit Style tooling
- Amada or Strippit style punch adapters
- Amada or Strippit style die adapters
- Automatic tool lubrication
- 800 strokes per minute for 36 ton head
- Hydraulic stripping
- Vacuum slug removal system
- Boschert software to run on PC
- Download software for above (requires cable & amp.)
- Extra clamps (each)
- Brush or ball supports in the table

Repositioning of sheets up to 10 meters with no death zone

Return to TOP

Contact us about Boscherts Punching Machines

Controlled Automation Plate Punch

Model 2AT-175

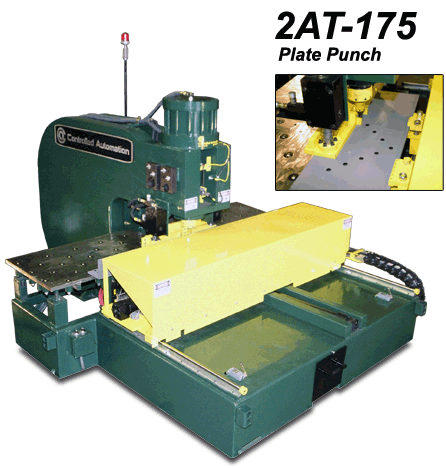

The Controlled Automation Model 2AT-175 Plate punch is a powerful plate duplicating machine. Its large table, powerful grippers, and high punch capacity allow it to handle your largest plate needs. As with all of Controlled Automation's machinery the PC based control system gives you and economical and seamless interface with your office programming system.

Controller Specifications :
