New Machinery | Ironworkers | Edwards Manufacturing Co. | 40 Ton C Ironworker

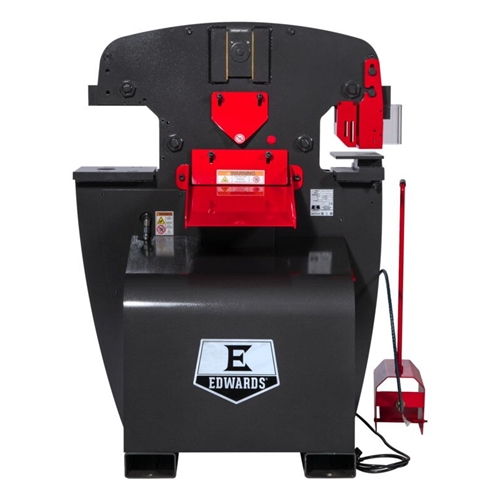

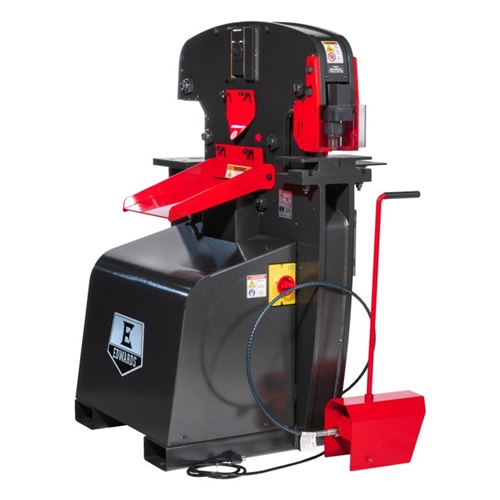

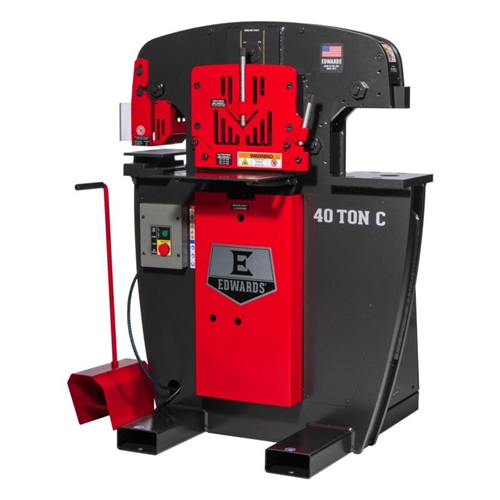

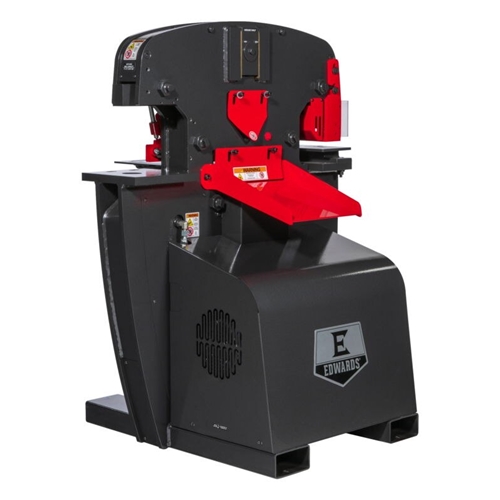

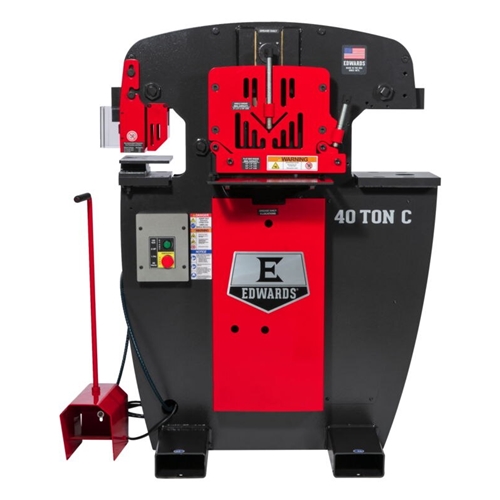

40 Ton C Ironworker



Manufacturer:

Condition: New

Description: The Edwards 40 Ton C Ironworker is ideally suited for home, farm fabrication and medium-sized job shops. Standard features include a Punch Assembly with Pedestal Die Table, Flat Bar Shear, Angle Shear and a universal open tooling station designed to accept optional Tooling Accessories. There are 11 interchangeable Attachments and 16 Accessories available allowing customization of an Ironworker to your needs.

40 Tons on 115 Volts

  • Four Available Workstations
  • Universal Open Tooling Station
  • Operates on 115V Power
  • ANSI B11.5-198802) Compliant Guarding
  • ETL Certified Controls
  • Integrated Lock-out/Tag-out

View Machine Manual Here



Specifications:


PUNCH
Rating (tons) 40
Max Capacity (in.) 1 diam. in 1/2 mild steel
Work Height (in.) 34-1/2
Throat Depth (in.) 7
Stroke (in.) 1-5/8

FLAT BAR SHEAR
Max Capacity (in.) 1/4 x 8
3/8 x 6
1/2 x 4
Work Height (in.) 34-3/4

ANGLE SHEAR
Max Capacity (in.) 3 x 3 x 1/4
Work Height (in.) 40



OPEN STATION
Throat Depth (in.) 10-1/2
Work Height (in.) 34-1/2

GENERAL SPECIFICATIONS
Standard Motor 2 HP
Product Dimensions 36-1/8 x 40 x 53
Weight (lbs.) 1,720
