New Machinery | Ironworkers | Edwards Manufacturing Co. | 110 Ton Elite Ironworker

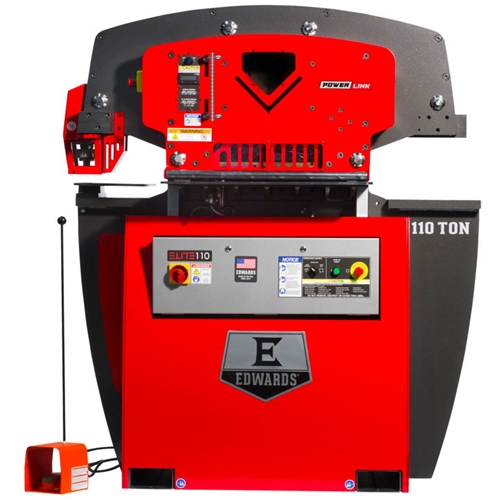

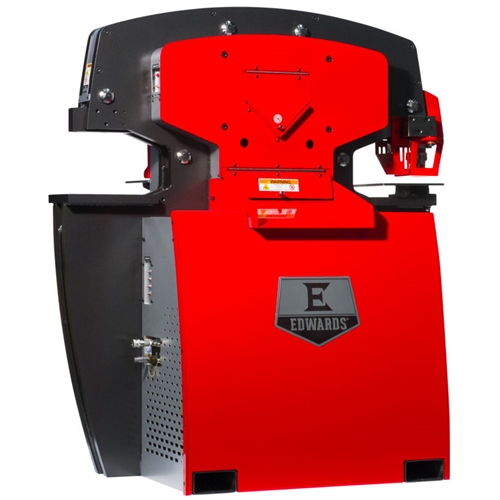

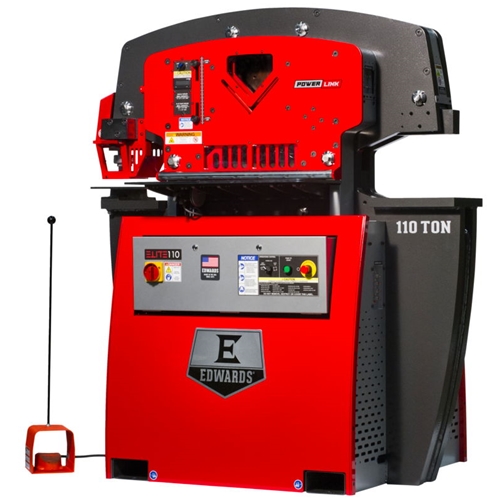

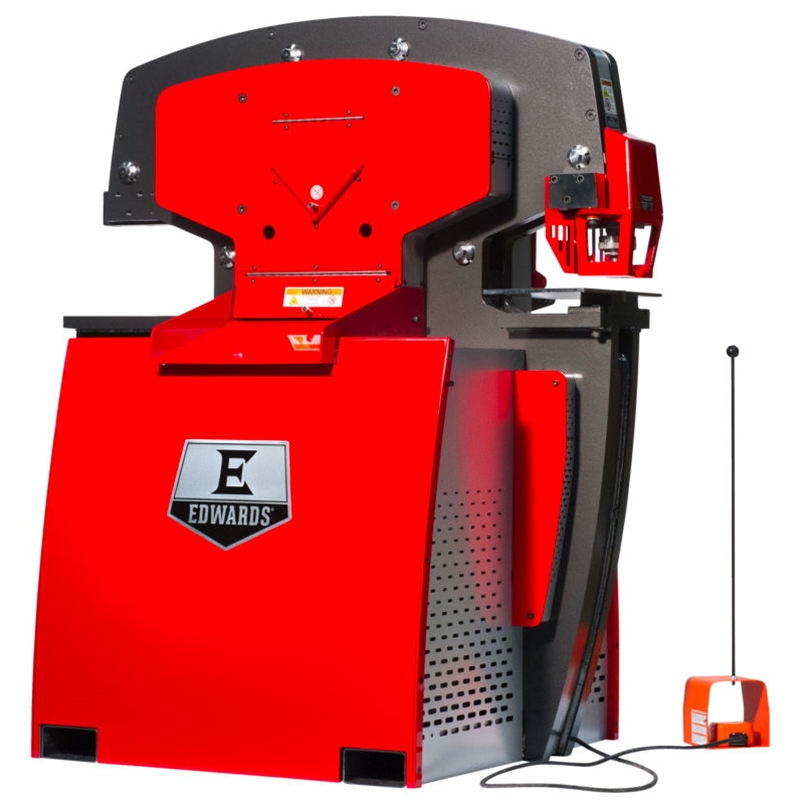

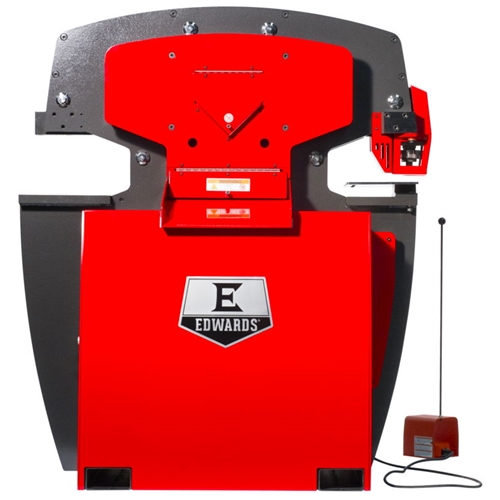

110 Ton Elite Ironworker



Manufacturer:

Condition: New

Description: The Edwards ELITE 110 Ironworker sets the standard of design excellence and superior performance with integrated value-added features in this robust new series of Ironworkers.

Standard features of the ELITE 110 include a Punch Assembly, Flat Bar Shear, Angle Shear and a universal open tooling station for optional Tooling Accessories. Integrated PowerLink System enable your ELITE 110 to act as a power source for our expanding line of innovative PowerLink Hydraulic Tools.

The Superior 4 Station Ironworker

  • Universal Open Tooling Station
  • ANSI B11.5-1988R(02) Compliant
  • ETL/UL Approved Controls
  • ELITE Integrated Features:
    • Hydraulic Hold-Down
    • E-Stop / Lockout-Tagout
    • Electric Stroke Control
    • Hydraulic Accessory Pack
    • Central Lubrication System
    • Swing-Away Stripper Assembly
    • Roller Encoder Measuring System
    • Quick Change Punch Assembly
    • Premium Gauging Tables
    • LED Lighting

View Machine Spec Sheet Here

View Machine Manual Here



Specifications:


PUNCH
Rating 110 Tons
Max Capacity 1-3/8" Dia. in 1" A36
(65,000 PSI Tensile)
Stroke 1-13/16"
Throat Depth 11-3/4"
Open Height 8-5/8"
Shut Height 6-13/16"
Work Height 41"

FLAT BAR SHEAR
Max Capacity 3/4" x 14"
1" x 12"
Max. Round 1-1/4"
Max. Square 1-1/4"
Work Height 41-1/2"

ANGLE SHEAR
Max Capacity 6" x 6" x 1/2"
Work Height 50-7/8"

Optional Coper Notcher
Max Capacity 2-1/2" x 6" x 1/2"
Work Height 44-3/16"



Open Station
Throat Depth 15-1/2"
Open Height 8-5/8"
Shut Height 6-13/16"
Stroke 1-13/16"
Work Height 39-3/16"

GENERAL SPECIFICATIONS
Standard Motor 7.5 HP 3~ 208 V or 230 V 1765 RPM 22 A
Optional Motors 7.5 HP 3~ 460 V 1765 RPM 11 A
7.5 HP 3~ 575 V 1770 RPM 8 A
7.5 HP 1~ 230 V 1765 RPM 36 A
Hydraulic Pump 10-1/2 GPM - 2 Stage
Valve Pressure 3000 PSI
Reservoir 17 Gallons
Cylinder 3-1/2" Ram

Dimensions
Height 66-1/16"
Width 57-1/4"
Depth 42-3/8"
Shipping Weight 5380 lbs
