New Machinery | Ironworkers | Edwards Manufacturing Co. | 120 Ton Deluxe Ironworker



120 Ton Deluxe Ironworker



Manufacturer:

Condition: New

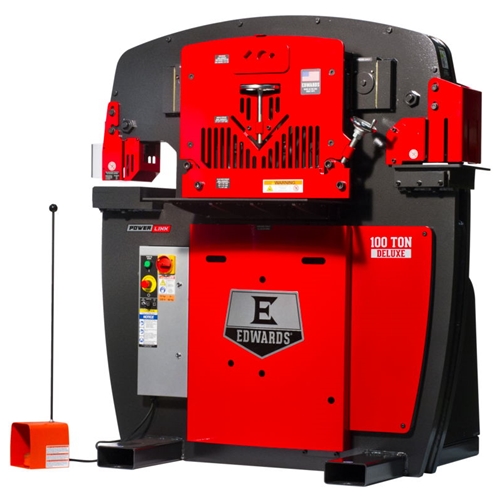

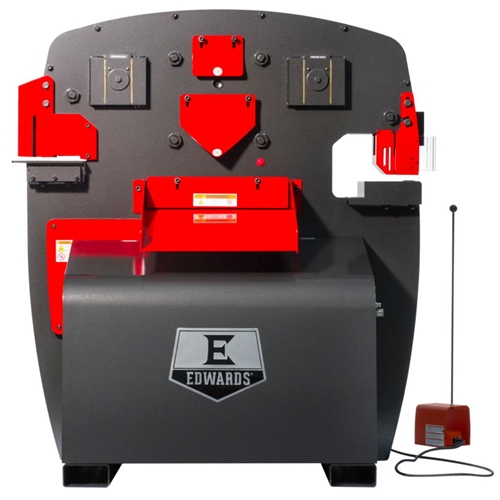

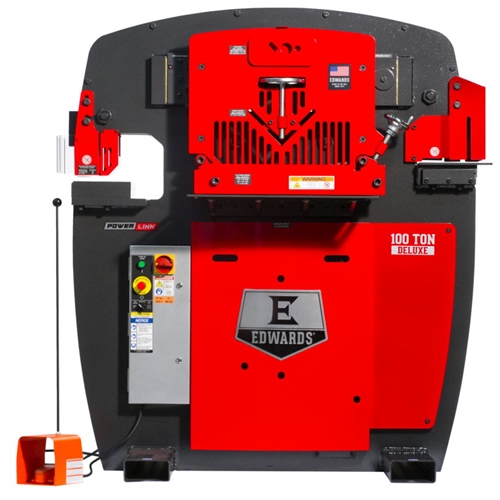

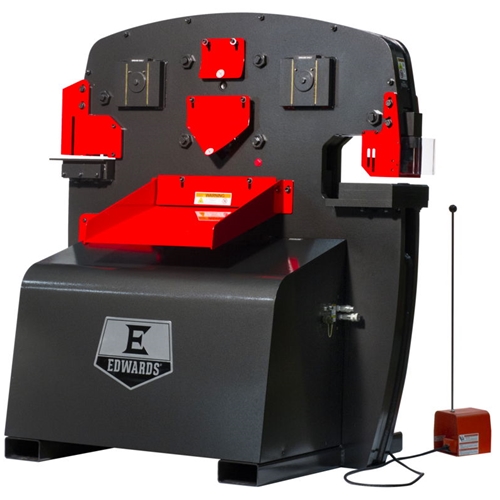

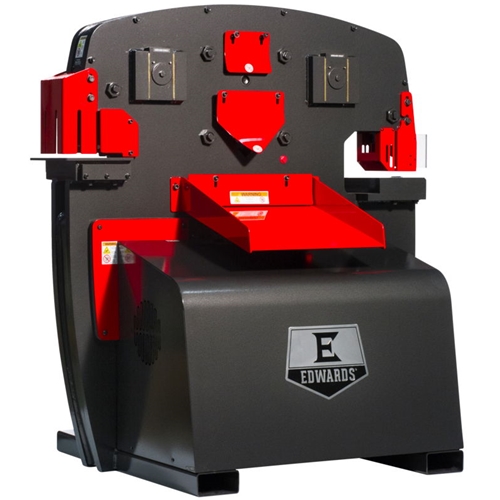

Description: A brute of an Ironworker, the Edwards 100 Ton Deluxe Ironworker features super-duty construction and a powerful 10hp motor. Standard features include a Punch Assembly, 18" wide Flat Bar Shear, Angle Shear, Coper Notcher and a special built-in Rod Shear for solid square and round bar stock.

The optional PowerLink System allows your Ironworker to act as a power source to our expanding line of innovative PowerLink Hydraulic Tools, such as the 10 Ton Tube/Pipe Bender, 20 Ton Shop Press and 40 Ton Shop Press.

Ideal for the Large Shop

  • Five Loaded Workstations
  • Built-in Rod Shear for Square and Round Bar
  • 18" Flat Bar Shear
  • Dedicated Coper Notcher
  • Electric Stroke Control
  • ANSI B11.5-1988R(02) Compliant
  • ETL/UL Approved Controls

View Machine Spec Sheet Here

View Machine Manual Here



Specifications:


PUNCH
Rating 100 Tons
Max Capacity 1-1/16" Dia. in 1" A36
(65,000 PSI Tensile)
Stroke 1-15/16"
Throat Depth 11"
Open Height 8-3/4"
Shut Height 6-13/16"
Work Height 39-3/8"

FLAT BAR SHEAR
Max Capacity 1/2" x 18"
3/4" x 14"
1" x 10"
Max. Round 1"
Max. Square 1"
Work Height 37"

ANGLE SHEAR
Max Capacity 6" x 6" x 1/2"
Work Height 43-15/16"




Rod Shear
Max. Round 1-1/2"
Max. Square 1-1/4"
Work Height 54-1/2"

Coper Notcher
Max Capacity 3" x 6" x 1/2"
Work Height 42"

GENERAL SPECIFICATIONS
Standard Motor 10 HP 3~ 208 V or 230 V
1770 RPM 26 A
Optional Motors 10 HP 3~ 460 V 1770 RPM 12 A
10 HP 3~ 575 V 1770 RPM 10 A
10 HP 1~ 230 V 1740 RPM 40 A
Hydraulic Pump 24 GPM
Valve Pressure 8500 PSI
Reservoir 17 Gallons
Cylinder 2-1/2" Ram

Dimensions
Height 63-1/8"
Width 56"
Depth 45-1/2"
Shipping Weight 5180 lbs
