CINCINNATI Precision Machinery - sheet metal fabrication machinery specialists...we are here to serve you for all of your sheet metal fabricating machinery Here at CPM we represent machinery for all of your sheet metal fabrication needs - everything from hand tools to lasers , coilines to brakes, notchers to ironworkers and much more. Please give us a call or glance through CINCINNATI Precision Machinery 's site for all your sheet metal fabrication needs.










Saws | Sheet metal cutting saws

Marvel sheet metal cutting Saws

MARVEL 8 MARK II Saws

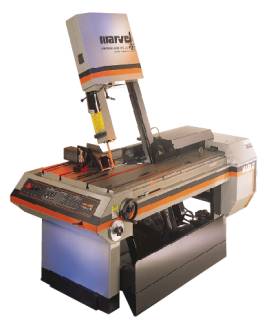

Marvel 8 Mark II Saw

Marvel's Series 8 Mark II sheet metal Saws - Our most popular bandsaw, a truly universal machine capable of making virtually any conceivable straight or miter cut (45° right & left). High Column also available in the Series 8 Mark II Bandsaw.

QUICK, EASY BLADE INSTALLATION The hinged upper band wheel cover and blade guard swing out of the way to allow easy, unobstructed installation of the band blade.

AUTOMATIC BLADE TENSIONING Once the band is in place, a few strokes on the ratchet handle (until it comes to a stop) apply correct tension on the blade. Four alignment screws on the band wheel allow proper alignment of the wheel for correct blade tracking.

AUTOMATIC COLUMN TRAVERSE STOPS Stop dogs on the Mark II can be set to limit the forward and return travel of the saw’s column. This feature considerably speeds cutting cycles when the full 18” travel of the column is not required for the sawing being done.

IMPROVED CHIP CONTROL The Series 8 Mark II has a chip control system that cleans the blade and collects chips for easy removal. A powered wire brush and two coolant jets wash chips off the band blade immediately after it leaves the cut. A deflector mounted on the base of the column minimizes chip accumulation and interference with the saw operation.

Specifications for the Marvel Series 8 Mark II saw:

    • Horizontal Capacity Standard Column 18” (457mm) High Column 18” (457mm)
    • Vertical Capacity Standard Column 22”(560mm) High Column 28”(712mm)
    • Vertical Capacity @45 Deg. Standard Column 12 1/2”(324mm) High Column17”(432mm)
    • Blade Dimensions Standard Column 14’-6” (4420mm) High Column 15’-6” (4724mm)
    • Wheel Diameter 18” (457mm)
    • Max. Vise Opening 21” (533mm)
    • Coolant Motor 1/4 HP (.2 kw)
    • Coolant Capacity 20 Gal. (78L)
    • Blade Drive Motor 2 HP (1.5 kw)
    • Blade Speed 50-450 FPM (15-137 M/MIN)
    • Feed Force 0-140 lbs (0-64 kg)

    Return to TOP

Contact us about Marvel's Series 8 Mark II Bandsaw for sheet metal .

    Dake sheet metal Saws Logo

Dake Saws

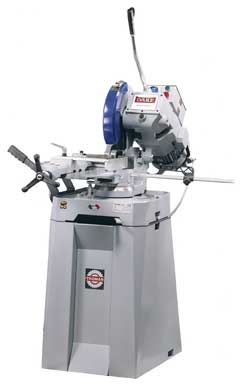

    Dake Cold Saw - Manual 250

These Dake Technics and Super Technics Cold Saws have heads that rotate 45º right and left of center. The Dake Cold Saws also have an adjustable hinged pivot, a cam-activated vise with gib adjustment and anti-burr arm (except 250), and a mechanical coolant pump with flow control adjustment. Dakes Model 350 features an adjustable clutch, three speeds, and will rotate to 90º for slot cutting operations.


Dake Saw - Model - Cut 250 specifications:

    • voltage -*110-volt ...
    • maximum blade diameter (inches) -10
    • motor (hp) - 1.2
    • speeds (rpm) -44
    • work height (inches) -37
    • overall front to back head up (inches) -35
    • height (inches) -61
    • floor space (left to right) (inches) -21
    • floor space (front to back) (inches) -20-1/4
    • solid round 90° capacity (inches) -1-1/4
    • solid round 45° capacity (inches) -1
    • tube 90° capacity (inches) -2-3/4
    • tube 45° capacity (inches) -2-3/8
    • square 90° capacity (inches) -2-1/2
    • square 45° capacity (inches) -2-1/8
    • rectangle 90° capacity (inches) -3-7/8x1-3/4
    • rectangle 45° right capacity (inches) -2-1/2x1-7/8
    • weight (pounds) -378

    Return to TOP

Contact us about Dake's model cut 250 saw.
