Roll former corporation "r" or "ag" panel machines | sheet metal machinery

Roll Former Corporation sheet metal machinery

Standard Features for the Roll Former AG panel or R Panel Machine include:
Hydraulic Drive & Rear Hydraulic Profile Shear
26 - 29 gauge steel capacity
Digital Controller
80-100 FPM Speed
Machine Stand Included

The "Ag Panel" or "R-Panel Machine produces one of two of the most popular Metal Roofing / Metal Building profiles used today. A very strong panel used as a Roof Panel and/ or Wall Panel. The machine will accept approximately a 42" wide coil stock (26-29 ga. Steel), giving you a 38" wide panel and 36" coverage with the panel overlap. The 3/4" Ag Panels are typically 9" o.c. with 5 major ribs within the panel - minor ribs in between. The 1 ¼" R-Panels are typically 12" o.c. with 4 major ribs - minor ribs in between. The machines are 18 - 22 stages long with 416 grade stainless steel forming rolls, 303 grade 1 ½" / 2" diameter stainless steel shafts, electric-hydraulic power - 220 volt 3 phase with hydraulic powered rear profile shear. Digital Controller for fully automatic operation at 80 - 100 FPM speed. Machine Stand included. A 48" x 5000 lbs. Decoiler (non-powered) is sold separately.

Roll Former Corp. R Panel Machine

* pictured above is Roll Former Corperation's "R" Panel Machine

Roll Former Corp. AG Panel Machine

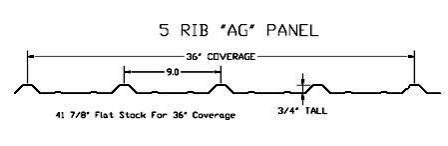

Roll Former Corp. AG Panel Machine Profile

Profile of the Roll Former Corperation AG Panel Machine

Roll Former Corp. R Panel Machine

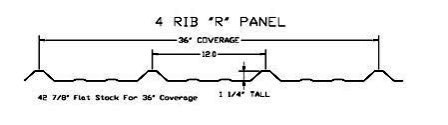

Roll Former Corperation R panel machine profile

Profile of the Roll Former Corperation R Panel Machine
