Engel VIKING Plasma Cutting Systems
Advanced Software That's Simple to Use
The Viking® comes with field-proven Vulcan® Cutting
System Software by Quickpen® to make light work of even the most
complex parts. The software includes a library of predesigned shapes,
plus more than 175 icon choices. What’s more, you can preview
fittings in 3-D and store frequently used fittings in a user-defined
library.
Standard software capabilities include:
Preview Software
Shows an input fitting as a 3-view picture. Each view can be rotated
at any angle to show a full 3-D view of the fitting.
Hole Cutting Program
Permits graphic definition of up to eight holes on most rectangular
fittings. The holes can be rectangular, round or flat oval, and can
be defined at any angle to the horizontal.
Calculation and Cutting of Turning Vanes
Also includes holes for rivets to hold the turning vanes on elbows and
T-pieces.
Vulcan Parts Graphic Software
Create and store shapes with a mouse-driven, pop-down menu. This program
can hold 10,000 individual shapes, as well as 10,000-sheet jobs at any
one time. The software includes a Direct Exchange Format (DXF) transfer
program for use with CAD systems. (Non-HVAC parts.)
Background Processing
Enables the processing of an order or job in the background, while the
operator continues to input data for a new order.
Accessory Takeoff
Automates the check listing of nonfitting purchased accessory items
for each job.
Manual Optimization
Enables the operator to either drag or rotate parts on the processed
sheet or move them to a different sheet.
Super and Manual Segmenting Program
Super Segmenting automatically splits blanks up to 100 times in each
axis, or use Manually Segmenting to segment the blank anyway you choose.
Engel Industries, a name you know and trust, is proud
to introduce Viking® —
its next generation of plasma cutting systems. Combining equal parts
evolution and innovation, we have developed a plasma cutting system
for the HVAC industry that is built to last longer, cut better and deliver
the highest levels of quality and value.
Power Meets Precision
Every Viking plasma cutting system has been designed to maximize your
return on investment by delivering years of quality service. That’s
why Viking includes the highest quality components on one of the industry’s
toughest and most stable frames. Combined with precision linear bearings,
dual rack-and-pinion drives, and a proven plasma torch capable of delivering
clean, precise cuts,
Viking effortlessly delivers the power and precision that today's HVAC
companies demand.
Innovative Design. Proven Results.
Innovative ideas are all over the Viking — ideas that will save
you time and money. For example, a unique “quick change”
torch head assembly enables an operator to quickly change consumables
without using any tools. What’s more, you can reduce energy and
heat costs because make-up air is not required due to the optional high-efficiency,
multiple-zone exhaust system.Of course, what matters most is the quality
of the cut, and it’s here that Viking really excels.
Viking’s innovative rack-and-pinion drive system, incorporating
sealed motors with high accuracy optical encoders, provides the accuracy
you need. What’s more, the unique floating head design of the
Hypertherm® Powermax 1000
plasma torch ensures high-quality, continuous cuts for both beaded and
nonbeaded material. The result? You get your job right the first time
— every time.
Increase your Productivity
with the Viking Double Table
Viking was also designed to be flexible. That’s why a double table
option is available for highvolume shops or those expecting to grow
their business. Measuring 10 ft. by 20 ft., it contains all the first-rate
features of the single table
version — and, in addition, you have a second table on which to
work. Because you can work concurrently on both surfaces, you can remove
completed pieces from one table while cutting on the other.
Get More with Viking®
• Excellent cut quality and precision on a wide variety of materials
• Cut up to 500 inches per minute (in lighter gauges) with the
Hypertherm® Powermax 1000 plasma cutting source and traverse at
speeds up to 800 IPM
• Floating torch head design delivers high-quality, continuous
cuts on beaded and nonbeaded material
• Unique “quick change” torch head assembly for easy
maintenance
• Hardened hourglass sealed bearings and ways for maximum stability
and
cutting system accuracy
• Sealed motors with optical encoders to meet the tightest tolerances
• The optional high-efficiency, multiple-zone exhaust system substantially
reduces energy and heat costs
• Field-proven Vulcan® Cutting System Software for high-productivity
operation
• Conveniently located, multifunction operator’s control
panel for complete
machine control and downloading of programs
• Unibody design ensures easy installation and operational stability
• No foundation required, so start-up costs are reduced
• Heavy-duty construction to ensure long life and maximum return
on investment
• User-friendly operator controls and easy-to-use software
• Collision protection for the torch head assembly and torch body
• Patented Hypertherm-shielded nozzle for longer nozzle life and
heavier
piercing capacity
• Predesigned shapes, plus more than 175 icon choices provided
as standard
• Preview fittings in 3-D, and store frequently used fittings
in a user-defined library
• Convenient table leveling jacks on each table leg
• Features the latest software from Quickpen® for maximum
efficiency
and reliability. This includes the enhanced fitting cutting software
and supernest
sheet optimization as standard.
• Customer support via the Internet includes online chat and diagnostics
• Powerful computer system workstation
In the increasingly competitive HVAC industry, it’s
all about doing more
with less — working smarter and faster, yet always delivering
the highest
quality. The good news is that you’ll be able to do just that
with Viking’s
standard high-productivity software and CNC controller.

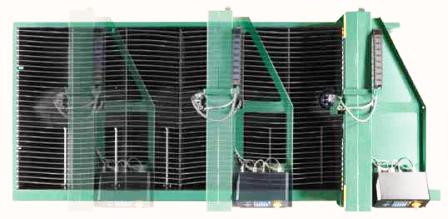

The Viking table is divided into 6 zones with the optional
zoned
exhaust system. As the bridge moves up and down the “Y”
axis
it opens and closes the exhaust dampers. There are never more
than 2 zones opened at one time which concentrates the “down
draft” exhaust in the area where the plasma cutting is taking
place
thus reducing the CFM required to effectively exhaust the system.
Total Control with Viking®
Viking’s standard CNC control capabilities include:
• Industrial-grade control for the most challenging environmental
conditions
• Manual speed increase/decrease override
• Kerf compensation
• Graphic machine status display
• Scale up/down
• Part rotation
• Shape repeat
• Acceleration control
• Remote safety stop switches and current-limiting drives for
safety
• Automatic corner slow down
• Automatic plate rotation for skewed plates
• Encoder feedback for positioning
• Tack feedback for smooth contour programming
• 24 preprogrammed shapes
• RS232C IO Port optically isolated
• Second “home” location can be set for piecework
• Fiber-optic communication with the office computer
• System is ready to accept download from authorized CAD partners
software
