Lion Machinery | Lion Cleat Benders - Folders | lion cheek benders | lion pneuma-wrap brake

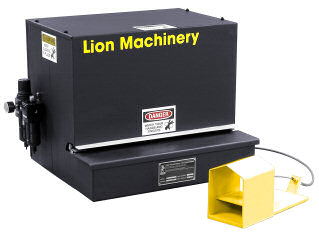

Lion Machinery Cheekbender

Lion Pneuma-Wrap Brake

Lion Pneuma Wrap Brake

Specifications for this Lion Pneumatic Wrap Brake :

  • Foot Pedal Control
  • Pneumatic drive folding beam
  • dial - adjustable bend angle 0-90
  • safety interlock controls
  • maintenance - free bearing & guides
  • automatic tDC/TDF notch locator
  • rugged welded steel contruction

LION Closed End Cleat Benders & Cleat Folders


LION closed end cleatfolders (combination cleatbenders and barfolders) are pneumatic.

· Heavy Duty
·Table height designed to accommodate large pre-formed ducts or flats
· In service for over 30 years!

Specifications for the Lion Cleatbenders:

Mild steel capacity: 18 gauge and lighter
Machine dimensions: 34H x 47W x 40D
Bend length: 3" to 36"
Machine weight: 1,100 lbs.
Bend width: 7/16" to 1"
Shipping Class: 85
Table height: 24"
Labor warranty: 30 days
Table depth: 21 - 1/2"
Parts warranty: 24 months
Air consumption: < 0.5 cu ft/cycle at 100 P.S.I
Machine color: Black


Models of Lion Cleat Benders available:


1836-3-3 3:
Position back gauge with toggle switch, preset at 1", 5/8" and 7/16" with 3 bend angles preset at 180° 90° and 45° (other settings available)

1836-2-3 2:
Position back gauge with toggle switch, preset at 1", 5/8" and 7/16" with 3 bend angles preset at 180° 90° and 45° (other settings available)

1836-1-3 1:
Position back gauge, preset at 1", 5/8" and 7/16" with 3 bend angles preset at 180° 90° and 45° (other settings available)

1836-0:
Cleatbender Only, Fixed back gauge, preset at 7/16" or 1/2" with a bend angle preset at 180°

LION PNEUMATIC OPEN THROAT CLEAT BENDERS

These Lion Cleat benders are pneumatic open throat cleat benders - these cleat benders are light weight, turns drives on "L" shapes, preformed ducts and flats. The table height of these Lion Cleat Benders are designed to decrease operator fatigue.

Specifications of Lion Pneumatic cleat benders model 2030A+:

  • fixed back gauge
  • preset at 7/16 inch or 1/2 inch a bend angle
  • preset at 180 degrees to bend up to 19-1/4"
  • machine dimensions for the cleat bendr are : 46Hx45Wx26D
  • bend length : 3" to 29 1/4 "

Specifications of the Lion Pneumatic cleat bending machine model 2024A+:

  • fixed back gauge
  • preset at 7/16 inch or 1/2 inch a bend angle
  • preset at 180 degrees to bend up to 23-1/4"
  • Cleat bender machine dimensions: 46Hx36Wx26D
  • bend length : 3" to 23-1/4"

Both of these lion pneumatic open throat cleat benders have a mild steel capacity of 20 gauge and lighter, a bend width of 7/16" to 1/2" and the air consumption of the lion cleatbending machines are <0.5 cu ft/cycle at 100 P.S.I. These cleat benders also have a table height of 36" and table depth of 15-1/2".
