Flangers | sheet metal flanging machines

Lockformer HVAC machines

Lockformer Auto - Guide Flanger 16-18

This Lockformer power flanger has the "auto-guide" feature, which automatically controls the forming of a right-angle flange. This Lockformer auto - guide flanger model 16-18 will contour and follow any edge, straight or curved. Using the convenient table slot, the operator merely turns up a starting edge, starts the material through the rolls and lets go. A calibrated dial sets the auto-guide for work with radii as small as 3-1/4". Two flange heights are available for this flanging machine - please specify 3/8" or 1/4".

Lockformer auto guide flanger 16-18

Specifications for the Lockformer Auto - Guide Flanger :

  • 16 gauge maximum , Working range 16-24
  • 2 flange heights available, 3/8" or 1/4"
  • 18 feet per minute

Contact us about this Lockformer Flanging Machine

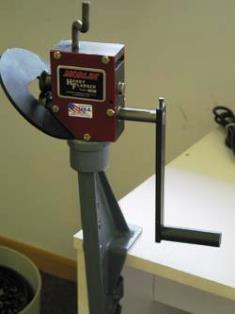

Eagle Morlin model 1300 Handy Flanger | flanging machine

Eagle Morlin Model 1300 Handy Flanger

This Eagle Morlin Flanging machine is precision crafted for effortless operation. Super heavy duty construction to last for years. Simply clamp your Eagle Morlin Handy Flanger to any work surface and it's ready to use.

eagle morlin handy flanger

Specifications of Eagle Morlins handy flanger model 1300:

    • Capacity: 20 gauge or lighter
    • Makes a perfect 7/32 flange, even on radius fittings.
    • Weight : Approximately 27 lbs.

Contact us about this sheet metal flanger made by eagle morlin.

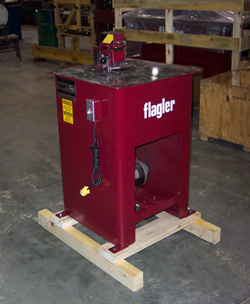

flagler 16 gauge power flanger

Flagler 16 Gauge Power Flanger

This Flagler Power flanging machine is ideal for larger fitting work. This Flagler Power flanging machine is built with a heavy duty cast iron gear housing with oil bath.

Flagler 16 gauge power flanger / power flanging machine

Specifications for this Flagler 16 Gauge Power Flanger :

  • Capacity: 16-20 Ga.
  • Height of Flange: 3/8"
  • Speed: Approx. 18 feet per minute
  • Motor: 3/4 HP 115/1/60/1800 RPM .
  • Drive: Vee Belt.
  • Base: Arc Welded Steel. heavy Top Plate
  • Dimensions: 24" long, 24" wide, 38 5/8". Feed Table Height 34 5/8"
  • Shipping Weight: Approximately 185 pounds

Contact us about this sheet metal powered flanger made by Flagler.
