Eagle morlin

Eagle Morlin sheet metal machinery

Eagle Morlin HEAVY DUTY MODEL 5400
ELECTRIC "PITTSBURGH LOCK" HAMMER

The PERFECT TOOL For Closing "Pittsburgh Locks" - Model 5400 -

The MORLIN 5400 Hammer speeds up and takes the work out of the only tedious, costly, and time-consuming job of fabricating duct work- closing the "seam." This new MORLIN tool breezes along at speeds of 15 feet per minute on commonly used gauges. Actually, this Eagle Morlin HEAVY DUTY MODEL 5400 ELECTRIC "PITTSBURGH LOCK" HAMMER can save half of a man's time in making ducts, and do a better job.

Ends Hand Hammering . . .
Just a couple of taps at the center and ends of a standard length duct to secure the lock . . . then the MORLIN Pittsburgh Lock Hammer does all the work.
Versatile . . .
Handles 30 to 22 gauge (no adjustment required). For straight runs, inside or outside radius . . . use it in the shop or on the job.
Perfect Balance . . .
Weight rests on the work . . . position of handle affords positive control and balance . . . guides easily along the seam.
Powerful . . .
HEAVY-DUTY BUILT 115V AC motor . . . more than enough power for any job.
Rugged . . .
Sturdily built for heavy-duty use . . . ball and roller bearings throughout.

Eagle Morlin MODELS 5200 & 5300
PNEUMATIC "PITTSBURGH LOCK" HAMMERS

Cut Big Jobs Down To Size . . . - Models 5200 & 5300 -

Now 2 styles of pneumatic hammers to choose from.

The Model 5200 operates with a side lever and the Model 5300 has a push lever throttle.

Powerful . . .
With an effective range of 30 to 18 gauge sheet metal,
this "HEAVY-DUTY" performer has more than enough power to meet your most demanding applications.
Durable . . .
All components of this fine tool are quality crafted of 100% TOOL STEEL, your assurance of years of trouble free performance.
Fast . . .
The UNSURPASSED SPEED of the MODEL 5200 helps cut your big jobs down to size. Saves time and money by effectively reducing labor cost.

An Exclusive Eagle Morlin Design!

NEW SWIVEL HEAD!!

An exclusive Eagle Morlin design. New Swivel Head Guide to fit pneumatic Pittsburgh Lock Hammer Models 5200 and 5300. You can set the guide permanently with lock screws or take the screws out to have the guide swivel 360 degrees! Existing models 5200 and 5300 can be easily converted to a swivel head model.

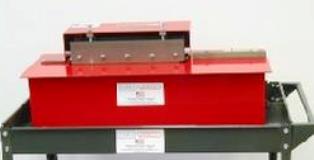

Eagle Morlin PORTABLE "PITTSBURGH LOCK" MACHINE

Make "PITTSBURGH LOCKS" Anywhere . . . Built "FIELD-TUFF" To Go Where The Work Is. Eagle Morlin - Model 2400 -

Capacity -- 24 to 28 gauge material.
Speed -- 35 fpm.
Motor -- Energy efficient, 1/2 H.P., 115/208-230V, 5.4 AMPS, 60 cycle, single phase, A.C., 1800 R.P.M., Auto over-load protector.
Housing -- Heavy gauge, spot welded steel enclosure with a primed and baked-on enamel finish.
Dimensions -- 32" long, 16 3/4" wide, 9 1/16" high (work surface), 13 1/4" high (cover guard). Work surface is 32" high when equipped with optional "E-Z MOVE" drop-in floor stand.
Weight -- Shipping weight, without optional floor stand, is approximately 109 pounds or 139 pounds with stand.
General -- All forming head components are precision crafted using case hardened steel and needle bearings throughout. Exclusive tuck-away power cord for easy portability.

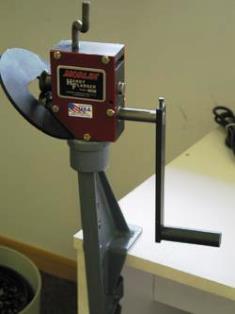

Eagle Morlin Model 1300 Handy Flanger

Capacity: 20 gauge or lighter

Super heavy-duty construction, to last for years.

Makes a perfect 7/32 flange, even on radius fittings.

Precision crafted for effortless operation.

Simply clamp your Eagle Morlin Model 1300 Handy Flanger to any work surface and it's ready to use.

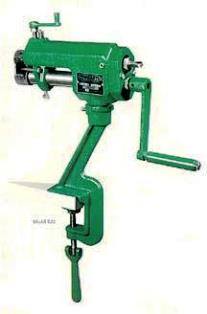

Eagle Morlin Rotary Machine - Model R22

The Model R22 rotary machine, with the interchangeable rolls, is a versatile forming tool for the manual performance of numerous sheet metal operations. This tool features a solid cast, enclosed frame and smooth meshing machine gears. Material can be fed through the rolls in either direction by selecting the proper arbor. The forming pressure of the rolls is controlled by the crank on top of the frame. This unit comes in standard rolls A, C, D, E and F listed on the chart, a hand crank, spanner and bench stand.

  • Maximum capacity, mild steel -- 22 gauge (0.75 mm)
  • Throat -- 7 in. (177 mm)
  • Distance, shaft center to center -- 2 in. (50 mm)
  • Shipping weight -- 67 lbs. (30 kg)
  • Export crate -- 2.14 cu. ft. (0.06 cu. m)

Eagle Morlin Cheek Bender - Model 1600

The Cheek Bender is a rugged tool built for increased productivity while getting the most consistent bends quickly. The Model 1600's two-way trunnion design holds the bending apron steady at the base of the bend, ensuring accuracy throughout the length of the sheet. This machine can be bench-mounted and adjusts for bends of 1/4 to 7/8 inches, 24 inches long. the Model 1600 cheek bender handles mild steel to 20-gauge.

  • Cheek Bender -- Model 1600
  • Capacity, mild steel -- 20 gauge/1.0 mm
  • Maximum bending -- 24 in./610 mm
  • Bend depth -- 1/4 in.-7/8 in. , 6.35 mm-22.2 mm
  • Dimensions, handles removed LxWxH 31 x 8-1/4 x 2-3/4 in. , 788 x 216 x 70 mm
  • Shipping Weight 80 lbs./37 kg
