Duct Beader | Duct Beading Machine

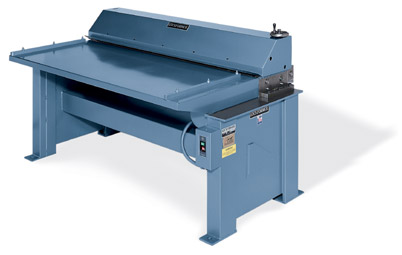

Lockformer Duct Beader Model 6016

When the job calls for heavy-duty "giants," this machine tool is it. With this 6016 Beader, only one operator is needed to produce SMACNA-approved beads 4-5 times faster than cross braking. It forms five beads, on 12" centers, adjustable to 1/8" depth. Maximum capacity is 16 gauge material and one operator can easily handle sheets up to 60" wide.

SPECIFICATIONS :

CAPACITY : Up to 5-foot-wide material 16 gauge maximum
DEPTH OF POCKET/SIZE : 1/8"
SPEED : 55 feet per minute

Lockformer Duct Beader Model 6020

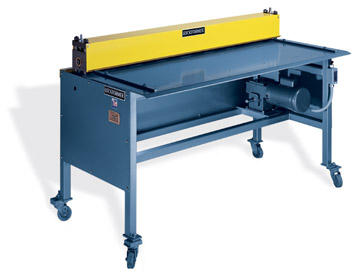

lockformer model 6020 duct beading machine

The latest design in beading technology is now available. Since beading is consistently replacing cross braking to stiffen ductwork against vibration and "bellying," the Lockformer model 6020 Beader combines structural integrity with demanding performance qualities. This Lockformer beader forms "offset" beads on 12" centers. Adjustable entrance gauge bars allow fittings or sheets to be beaded from 24" to 60" widths.

Specifications :

CAPACITY : Up to 5-foot-wide material 20 gauge maximum
DEPTH OF POCKET / SIZE :1/8"
SPEED : 50 feet per minute

lockformer profiles for the model 6020 duct beader

TIN KNOCKER

Tin Knocker Duct Beader

Tin Knocker 60" x 16 Ga. adjustable Duct beader Produces SMACNA approved beads in a fraction of the time it takes to cross brake your duct work. A one man operation, this heavy duty duct beader comes with five (5) sets of bead tooling that can be located anywhere over the 60" working length. Tooling, if broken or damaged, is replaceable without the requirement of replacing an entire cross shaft. Beads are adjustable for this duct beader in depth to 3/16" deep. This Tin Knocker Duct Beading Machine has a powered exit support roll to ensure no material hang-up.

Specifications for Tin Knocker Duct Beaders:

Capacity: 16 Ga. Mild Steel (Galvanized) x 60" (1.5mm x 152.4cm)

Motor: 1 H.P.,115v, Single Phase, 60 Hz Standard (230/1/50 available)

Dimensions: Approx. 80"L x 43"W x 34" Passline Height (203cm x 109cm x 86cm)

Contact us about these Duct Beaders.
