Betenbender | shears | Sheet metal fabricating machinery |

Betenbender PressBraking Machines - for bending sheet metal  and Betenbender Shears for cutting  / shearing sheet metal

Betenbender Manufacturing , Inc.

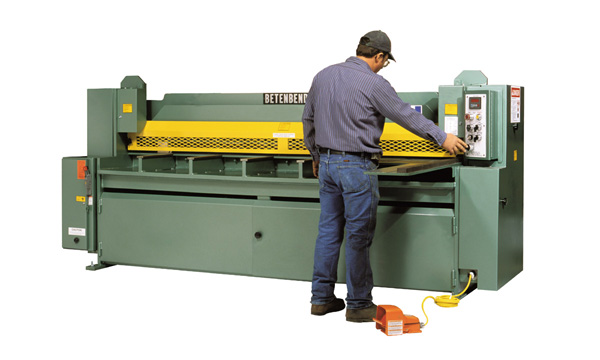

Betenbender designs simplicity and safety into its Hydraulic Shears -- with an advanced hydraulic system and flexible operation. They're easy to operate, easy to maintain and able to withstand the rigors of today's production demands.

STANDARD FEATURES FOR BETENBENDER HYDRAULIC SHEARS :

  • 36" Power Backgauge with LED Readout - Inch/Metric
  • Power Adjust Variable Rake
  • 4’ Squaring Arm with Inlaid Scale
  • Hour Meter
  • Light Beam Gauge (Shadow Line)
  • Single Piece Top and Bottom, HCHC Shock Resistant Knives with Four Cutting Edges
  • Hydraulic Self-Compensating Holddown Bar Assembly
  • NEMA Electrics
  • All Hydraulic Fluids Included
  • American Made Motor and Valves
  • Safety Switch for Front Gaurd
  • Disconnect Switch
  • American Made Hoses and Fittings
  • All Steel Construction
  • Hydraulic Pressure: 2500 PSI
  • Manual Rapid Blade Gap Adjustment (3/8", 1/2", 5/8", 3/4")
  • Manual Swing Up Backgauge
  • 230/460 Volts
  • Foot Switch

SPECIFICATIONS FOR BETENBENDERS HYDRAULIC SHEARS:

Controls: Push button and switch controls are at your fingertips. The fully guarded, 2-position 110V footswitch lets you interrupt the cutting stroke at any point in its cycle.

Easy Material Handling: A sturdy backgauge and rake angle adjustment minimizes twist and distortion. This makes it possible to increase the rake for cutting heavier stock and extend maximum capacity of the machine. A 4’ squaring arm with recessed scale makes for fast, easy measurement.

Modified High Carbon, High Chrome Reversible Knives: Provide four separate edges for clean cuts and long blade life. Easy blade gap adjustment means precise cuts for a wide variety of materials.

Electrical System: Meets NFPA79 and construction requirements of the ANSI B11.4. All machines have disconnect switches, magnetic starters, 110/120 volt controls, and 220/460 voltages.

Backgauges: A Betenbender Hydraulic Shear is capable of shearing 1/8" (10 gauge) material to the following tolerance: Dimension - The width of the off-cut portion of the work- piece is within ±0.005 inch of the backgauge setting.

OPTIONS AVAILABLE FOR BETENBENDER HYDRAULIC SHEARS:

  • Power Lift Backgauge
  • Automatic Power Lift Backgauge
  • Pneumatic Sheet Support
  • Extra Length on Backgauge
  • Solid Table Top - Bolt on segments
  • Machined Solid Top Bed
  • 48" Support Arms/Front Gauges
  • Inlaid Scale, 0 - 48"
  • Angle Gauge
  • Electronic Stroke Control
  • Continuous Stroke
  • Stroke Counter
  • One Shot Lubrication
  • Automatic Lubrication
  • Ball Transfers
  • Independent Holddown Control
  • 4' Left Hand Squaring Arm
  • Extended Squaring Arm (4’ Standard)
  • Extra Foot Pedal w/Keylock Switch
  • Keylock Switch
  • Flip Up Stops (Squaring Arm)
  • Disappearing Stops (Support Arm)
  • Increase HP (Increase Stroke)
  • Oil Cooler
  • Control Panel with Optional Stroke Control
  • 3-Position Power Blade Gap Adjustable with Indicator Lights
  • Manual Rapid Blade Gap Adjustment (on 1/8" (10ga), 3/16", 1/4")
  • 5 Station NC "GO-TO" Backgauge Positioner
  • CNC Backgauge
  • Neoprene Hold-down Caps
  • Dovetail Slots or T-Slots
  • 220/460 (specify either)
  • Gap Type Machine (Slitting)
  • Harder grade of high carbon, high chrome knives
  • 208 Volt
  • Special Paint Colors
  • Light Beam Gauge
  • Left or right squaring arm available - extension of squaring arm also available
