Spiral Duct Machines

BETECH , inc. for all of your spiral duct / oval duct making needs

Betech Spiral Machines

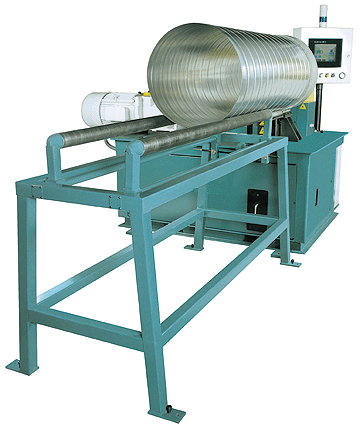

BETECH Spiral Duct machine

Spiraler is an automated system for producing rigid spiral metal pipe from 4 inches (100 mm) in diameter up to 100 inches (2,500 mm) in diameter. This versatile machine enables you to manufacture pipe from a variety of materials including aluminum and galvanized steel up to 14 gauge (2.0 mm) and stainless steel up to 18 gauge (1.2 mm). Computerized pipe dimensions and adjustment data ensure uniform pipe size every time. The Spiraler is now available with the optional Gorecutter to cut elbow gore sections from spiral duct, reducing additional operations and saving labor.

The Improved design Spiraler available with on the fly torch activation and optional Gorecutter.

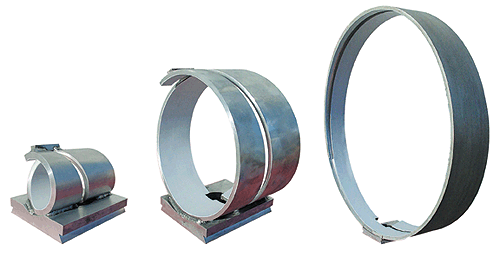

Spiral Duct Forming Heads

Spiral Duct Forming Heads

Spiral Duct Forming Heads are for producing rigid spiral metal and flexible pipe from 4 inches in diameter up to 100 inches in diameter (metric sizes from 100 mm to 2,500 mm). This versatile tooling is Teflon-lined and requires less lubrication than conventional forming heads, allowing new pipe to be painted or shipped with less labor-intensive prep work, greatly improving your efficiency.

  • On the fly torch activation that eliminates the arc pierce hole in the cut edge of the spiral pipe. With this enhancement the fabricator will have a smooth, uninterrupted cut plane. This is particularly attractive in smaller diameter pipe.
  • A fabricator can also program the plasma cut-off torch to cut elbow gore segments from spiral pipe with the new Gorecutter option. This option eliminates blanking, rolling and side-seam fastening. The fabricator need only join the segments circumferences to fabricate an attractive and strong elbow.

Betech Spiral Duct machine closeup of the spiraler with torch

Some of the other machinery that BETECH offers are the OVALER - for making oval shaped duct, the OVALROLLER - automatic pinch roll system that forms gores for flat oval or round fittings, the FITTER - joins segment blanks into airtight segment elbows, reducers, and endcaps from 5 inches to 50 inches (125 mm to 1,250 mm) with a standing gore seam, and the FLANGER - enables you to manufacture flanges for connecting round and flat oval pipe and fittings.
