Vicon Machinery | Plasma Automation

Abrasive Waterjet System | Cheekbender - Powered | Coil Lines | Duct Fabricating Machinery | Liner Cutting Tables | Plasma Cutting Machines | Roll Forming Machines |



VICON Abrasive Waterjet System

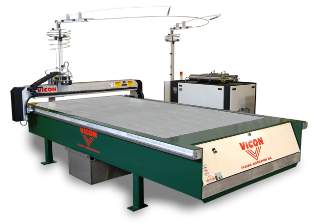

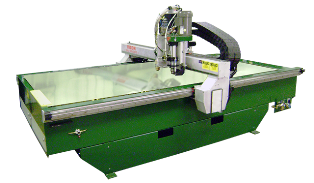

Vicon Abrasive Waterjet Cutting System

This newly developed machine is equipped with Hypertherm HyPrecision Intensifier capable of cutting materials up to 4” with extremely accurate tolerances. This system is based on newly developed gantry and motion system, along with the recently enhanced electronics and Vicon Control software. The system is available in 5' x 5' or 5' x 10' models.

Vicon Abrasive Waterjet Cutting System

Features & Benefits:
Precision Ball Screw Drives
Yaskawa Servo Motors and Drives
Exclusive Vicon PC Control System and Auto Nesting Software
410 Stainless Steel Tank Frame
304 Stainless Steel Cosmetic Covers
Rigid Extruded Aluminum Gantry
Hypertherm Pump Technology & Abrasive Delivery System

Optional Features:
Recirculating Chiller Unit for the Pump
Four Compartment Stainless Steel Strainer Tank for Excess Water Drainage

Specifications:
Accuracy: ± .005"
Cut Speed: 400 IPM
Traverse Speed: 400 IPM
Repeatability: .002"
Z Vertical Travel: Approx. 8"
Table Sizes: 5' x 5' & 5' x 10'



Return to TOP

Contact us about this Vicon Coil Abrasive Waterjet.

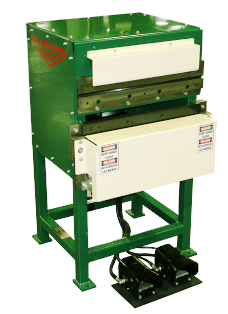

VICON Power Cheekbender

Vicon Power Cheek Bender

The Vicon Cheek Bender will form 1/4" and 7/16" male quarter edge flanges to the cheeks of your fittings. Optional Button Punch lancing feature is available.

Features & Benefits:

Designed to form a 90° flange on either side of the unit (Optional Button Punch available)


18 Gauge mild steel maximum capacity
24" wide bending capacity
Foot pedal control
Open ended allowing formation on either side as well as longer flanges with additional cycles
Welded tubular frame
Replaceable, hardened wear plate for use with plasma cut edge
Slide out gauge allows for 1/4" or 7/16" bend

Return to TOP

Contact us about this Vicon Powered Cheekbender.



VICON Coil Lines

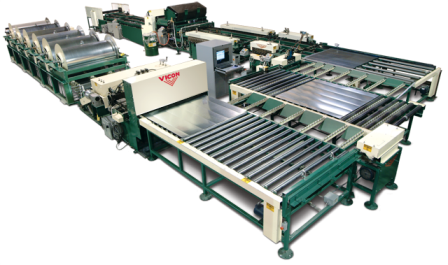

Vicon Full Coil Line

Because your bottom line is what matters most to us. From the patented coil loading system (the fastest in the industry) to a unique rollformer design that's engineered to maximize uptime, the Vicon Coil Line manages profitable duct work from every angle.

Reliable performance, high productivity and superior part transfer is just the beginning. The Vicon Coil Line is backed by our exclusive commitment to provide you with nationwide one-call service, training and support for as long as you own your machine.

Vicon Coil Line software program for Windows®

ViSoft Software is menu-driven, user-friendly and can be set to SMACNA standards or customized to your shop standards. Continually updated and supported by Vicon's experienced team of programming engineers, ViSoft ensures enhanced productivity and superb part accuracy.

Segments of the Vicon Full Coil Line:

Duct-Line Express


Automatic Rectangular Duct Blanking System

The Duct-Line Express front end is expandable to a Full Coil Line system at anytime. This practical solution includes an uncoiler (patented), feeder, straightener unit, beader, notching unit and heavy duty shear.


Lockseam System

Model V-510-LS

The Lockseam System is built for ease of use and reliability. The system accepts beaded, notched and sheared blanks and automatically forms the Pittsburgh or Snaplock seams.



Dual Head Cleat Edge Former


Model V-CEF-DH-5

The Dual Head Cleat Edge Former rollforms a 7/16" cleat edge on both ends of the duct.

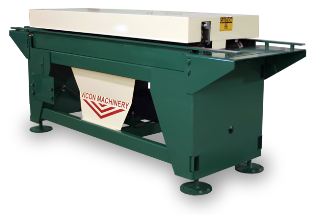

Dual Head TDX Rollformer


Model V-TDX-DH-5

The Dual Head TDX Rollformer will produce SMACNA's T25a or T25b connections. Material is formed to produce a SMACNA approved transverse flange connection.



Automatic Duct Liner Application System


Model V-510-DD

The Automatic Duct Liner Application System uncoils duct liner, applies liner adhesive to the sheet metal and automatically pins the liner to the sheet metal. This machine can work with various types of liner including but not limited to Armaflex® and K-Flex® insulation.



Full Wrap Automatic Brake System

Model V-516B-FW

The Full Wrap Automatic Brake System is a heavy duty hydraulic bending unit. Your duct is completely formed and ready to be seamed once the duct is automatically ejected by the computer controlled gripper unit. The system is smooth, fast, accurate and reliable.



Return to TOP

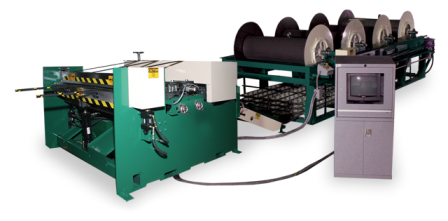

Vicon Duct Line Express Shear-N-Bend




Shear-N-Bend

The Duct-Line Express Shear-n-Bend is expandable to a Full Coil Line system at anytime. This practical solution includes an uncoiler (patented), feeder, straightener unit, beader, notching unit, heavy duty shear and bending unit.

Vicon Coil Line software program for Windows®

ViSoft Software is menu-driven, user-friendly and can be set to SMACNA standards or customized to your shop standards. Continually updated and supported by Vicon's experienced team of programming engineers, ViSoft ensures enhanced productivity and superb part accuracy.

Features & Benefits:
Pneumatic back-up wheels at each coil station for safe band removal and positive coil feed.
Robust, gear-driven four (4) roll straightener with 4" diameter rolls.
Ring type beading with SMACNA spacing.
Heavy duty notching unit with combination dies to provide Slip & Drive, TDX, Snaplock and Pittsburgh notch patterns.
Dual hydraulic cylinder shear with high carbon, high chrome D-2 shear blades. Fully adjustable heavy duty gibs allow for independent blade gap adjustment. Heavy duty torsion synchronization shaft insures proper shear angle throughout the stroke.
Rugged bending unit to form the male Pittsburgh edge as well as either an L-section, U-section, or full wrap duct.
Vicon PC based control system capable of controlling a complete system.
Hands-free coil feed

Options:
72" coil width
Precision, high speed servo system
Tie rod hole punch unit Model HP-5 provides tie rod and damper holes per SMACNA standards (or your own standards).
Male button punch system for Snaplock male edge.
Economical overfed coil cradle systems for smaller overall footprint.

Specifications:
16-30 Gauge mild steel capacity
12,000 lbs maximum coil capacity (with coil drive)
Coil widths from 48" - 60" standard
Up to six coil stations available
Quick-change coil spools (patented)
Hydraulic coil drive
Powered in-feed guide ramp with hand wheel for change in coil widths
Approximately 70 FPM line speed

Return to TOP

Vicon Duct Line Express Shear-N-Bend With Cleatformer




Shear-N-Bend With Cleatformer

The Duct-Line Express Shear-n-Bend with Cleat Former is expandable to a Full Coil Line system at anytime. This practical solution includes an uncoiler (patented), feeder, straightener unit, beader, cleat forming head, notching unit, heavy duty shear and bending unit.

Vicon Coil Line software program for Windows®

ViSoft Software is menu-driven, user-friendly and can be set to SMACNA standards or customized to your shop standards. Continually updated and supported by Vicon's experienced team of programming engineers, ViSoft ensures enhanced productivity and superb part accuracy.

Features & Benefits:
Pneumatic back-up wheels at each coil station for safe band removal and positive coil feed.
Robust, gear-driven four (4) roll straightener with 4" diameter rolls.
Ring type beading with SMACNA spacing.
Heavy duty notching unit with combination dies to provide Slip & Drive, TDX, Snaplock and Pittsburgh notch patterns.
Dual hydraulic cylinder shear with high carbon, high chrome D-2 shear blades. Fully adjustable heavy duty gibs allow for independent blade gap adjustment. Heavy duty torsion synchronization shaft insures proper shear angle throughout the stroke.
Integrated rollforming produces hems or flanges on the edge of the material.
Rugged bending unit to form the male Pittsburgh edge as well as either an L-section, U-section, or full wrap duct.
Vicon PC based control system capable of controlling a complete system.
Hands-free coil feed

Options:
72" coil width
Precision, high speed servo system
Tie rod hole punch unit Model HP-5 provides tie rod and damper holes per SMACNA standards (or your own standards).
Male button punch system for Snaplock male edge.
Economical overfed coil cradle systems for smaller overall footprint.

Specifications:
16-30 Gauge mild steel capacity
12,000 lbs maximum coil capacity (with coil drive)
Coil widths from 48" - 60" standard
Up to six coil stations available
Quick-change coil spools (patented)
Hydraulic coil drive
Powered in-feed guide ramp with hand wheel for change in coil widths
Approximately 70 FPM line speed

Return to TOP



Vicon Pipe Line



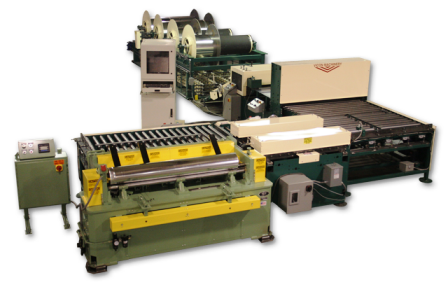

Vicon Pipe Line

The Vicon Pipe Line manufactures precision round pipe sections automatically and fast. Sizes range from 3” to 24” diameter with either the well known reeves or modified lock seams. The Vicon Pipe Line produces profitable duct work.

Reliable performance, high productivity and superior part transfer are just the beginning. The Vicon Pipe Line is backed by our exclusive commitment to provide you with nationwide one-call service, training and support for as long as you own your machine.

Vicon Coil Line software program for Windows®

ViSoft Software is menu-driven, user-friendly and can be set to SMACNA standards or customized to your shop standards. Continually updated and supported by Vicon's experienced team of programming engineers, ViSoft ensures enhanced productivity and superb part accuracy.



Vicon Pipe Line Express

Pipe Line Express


Automatic Round Pipe Blanking System

The Pipe-Line Express includes an uncoiler (patented), feeder, straightener unit, beader, notching unit and heavy duty shear.

The precision servo drive on the straightener delivers accurate blanks every time for consistent pipe diameters. Underfed coil cradles provide easy threading and allow a quick change to another coil when needed.



Pipe Lockseam System


Automatic Round Pipe Lock Seam System

The system can be provided with a turn around roll former to allow switching from one lock style to the other in just minutes. Pipe thickness can range from 30 to 24 gauge and pipe length can range from 2’ to 5’.

The dual head lock seam roll former automatically sets to the proper location with a servo drive and is controlled by the single input operator console.



Nor Pipe Roll System


Automatic Round Pipe System

The pipe roller is supplied by Nor and is controlled by a microprocessor. The male end of the pipe is crimped during the bending cycle and the lock seams remain uncrushed by being “jumped” over during the automatic process.

As pipes are completed, the line operator can hold the first piece in place as the part exits the roller, which allows the next part to feed inside the prior piece. This is done repetitiously for nesting and packaging purposes.

Return to TOP

Contact us about any of these Vicon Coil Lines.



VICON Duct Fabricating Machinery

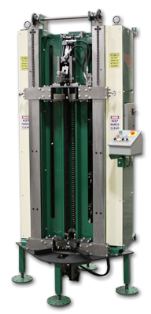

Vicon Pittsburgh Seam Closer

The Vicon Pittsburgh Seam Closer reliably closes the Pittsburgh seam on duct work ranging from 26 to 16 gauge and 12" to 60" in length.
The heavy-duty "Single V" forming roll closes the Pittsburgh seam from either side, eliminating the need to turn the duct section over to align the Pittsburgh edge with the forming wheels thus saving time and labor.

Vicon V-PSC-V516 Pittsburgh Seam Closer

Features & Benefits:
26 to 16 Gauge material capacity
12" to 60" duct length
"Single V" Forming Roll with heavy duty bearings and shafts will close the Pittsburgh seam from either side eliminating the need to turn duct section over to align the Pittsburgh edge with the forming wheels.
Grease fittings on the forming roll for longevity
Easy to clean sealant from forming roll
Counter balanced top clamp head for easy set-up (no tools required)
Large, heavy-duty removable clamp pads for easy clean up of duct sealant
Large, heavy-duty roller chain drive (no cables)
Easy operation with manual or automatic Push Button Control
Hydraulic Power Unit (not shown)
3 HP Motor (Single or 3-Phase Voltage)
Fits most existing pits, pit dimensions provided upon request



Return to TOP

Contact us about this Vicon Pittsburgh Seam Closer.

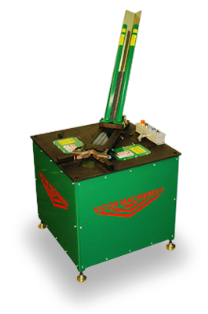

Vicon Single Head Corner Insertion Machine

The Vicon Single Head Corner Insertion Machine features a heavy duty frame structure designed for single corner insertion of flanged duct fittings.
Machine utilizes various brands of TDX™, TDF™, TDC™ stackable corners. Standard tooling designed for 16-26 gauge duct. Interchangeable tooling available, with quick changeover for various flange types. 100 PSI air pressure required for 16 gauge processing. The Table Top or In Ground/Pit Placement design allows customizable operator working height.

Vicon V-SH-CIM Single Head Corner Insertion Machine

Features & Benefits:
Standard tooling designed for 16-26 gauge duct
Table Top or In Ground Design for single corner insertion of flanged duct fittings
Heavy Duty Frame Structure Design
Machine designed to utilize various brands of stackable corners that are designed for automatic corner inserting machines
Interchangeable tooling available for various flange types, if required
100 PSI air pressure required for 16 gauge processing
Tooling designed for quick changeover
Voltage: 110/1/60Hz
Pit Size, if requested, per Engineering drawing
Manual or Auto Push Button controls
Duct Connector types TDX™, TDF™, TDC™



Return to TOP

Contact us about this Vicon Single Head Corner Insertion Machine.

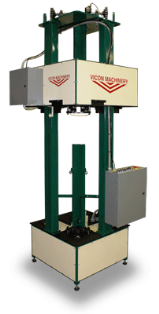

Vicon Dual Head Corner Insertion Machine

The Vicon Dual Head Corner Insertion Machine inserts and crimps stackable bolt connection corners into straight duct with T25-a or T25-b flanges.
The Vicon Dual Head Corner Insertion Machine handles ducts of 26 to 16 gauge galvanized in lengths ranging from 32” to 56” with quick and simple adjustments.

Vicon V-DH-CIM-5 Dual Head Corner Insertion Machine

Features & Benefits:
26 to 16 gauge capacity
Minimum straight duct length 32”
Maximum straight duct length 56”
Heavy duty tubular frame structure design
No tools required for changing duct lengths
Available tooling for T25-a or T25-b corners
Duct connector types TDX®, TDC®, TDF®
Compatible with most brands of stackable corners
Auto or manual control functions
Top and bottom head can be operated independently
Low corner quantity alarm sensor eliminates crimping without the corner
Built in quick leveling system for easy installation
Easy removable access covers for maintenance and cleaning
Voltage 110/1/60 Hz
Air requirement: 100 PSI
Optional six foot (6’) capacity machine available upon request
Pit dimensions provided upon request



Return to TOP

Contact us about this Vicon Dual Head Corner Insertion Machine.



Vicon Duct Brake

The Vicon Duct Brake forms TDX flanged duct with quick and easy positioning and 90° bending of End Flange, L-Duct Sections, Full Wrapper Duct, and Fittings.

Vicon V-TDX-B Duct Brake

Features & Benefits:
16 Gauge x 5’ Bending Capacity
Maximum 2" Liner Capacity when forming lined duct
6" x 6" minimum full wrapped, unlined duct size
Pneumatic forming cycle, single foot switch operation for TDX or S&D
Manual or push button controls
Timer to control bend sequences
Precision heavy duty construction
Adjustable height table for TDX, S&D, and Raw
Slip & Drive capability
Front support apron
Retractable notch positioning guide for self-aligning bend location and easier part removal
80 PSI / 5 CFM
115 Volt / Single Phase



Return to TOP

Contact us about this Vicon Duct Brake.

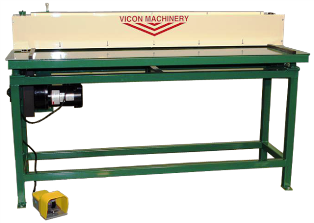

Vicon Duct Beader



Vicon V-2060-BD (20 Ga) & V-1860-BD (18 Ga) Duct Beader

Features & Benefits:

Model V-2060-BD:
20 Gauge Mild Steel Capacity, 60" wide
12" bead increments
Chain Drive
30 FPM
1/4 HP Motor, 115 volt single phase

Model V-1860-BD:
18 Gauge Mild Steel Capacity, 60" wide
12" bead increments
Chain Drive
40 FPM
1/2 HP Motor, 115 volt single phase

Options:
Foot Pedal



Return to TOP

Contact us about this Vicon Duct Beader.

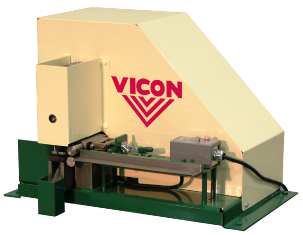

Vicon Edge Notcher

The Vicon Edge Notcher has an unlatching feature so that round pipe can be notched after it is rolled.
Tap-in locks can be notched after they are roll formed. The punch will notch right up to the standing seam profile by setting the guide depth. The notch pattern can be performed in the flat, prior to roll forming.

Vicon "Clinch", "Tap-in", "Tab" Edge Notcher

Features & Benefits:
18 or 20 Gauge mild steel capacities available
Variable notch depth up to 1-1/4"
Variable notch spacing (Factory set at 3/4")
Automatically progresses flat parts or round pipe
Voltage:
110/1/60; 1 HP Motor (20 ga model)
220/1/60; 2 HP Motor (18 ga model)
Bench mounting recommended



Return to TOP

Contact us about this Vicon Edge Notcher.



VICON Liner Cutting Tables



Vicon HVAC 510 Liner Cutting Table

Vicon Liner Cutting Systems save considerable time and cost by eliminating the labor-intensive manual liner cutting. The new Vicon patented process automates duct liner cutting, making it clean, dry, fast, smokeless and accurate. In addition, liner waste is greatly reduced adding to the increased profits.

REDUCE PROGRAMMING TIME!
All liner cutting machines include the latest Vicon HVAC Cutting Software Program, which is developed and maintained by our experienced team of dedicated in-house programmers. This Windows® based, menu driven program is user friendly and easy to learn. Full Rectangular, Round, Oval and Geometric Parts libraries as well as the powerful Vicon CAD program are included. This software is capable of downloading job data to and from other controller software, and it is fully compatible with the optional touch screen monitor.

OPTIMIZE WORK FLOW!
With the patented Bar Code Scanning option, sorting problems are a thing of the past. Coordinating the flow of sheet metal and duct liner through the shop is made much simpler and faster. Sheet metal parts are scanned, and the machine is automatically programmed to produce the corresponding downsized duct liner. Superior true-shape nesting minimizes waste.

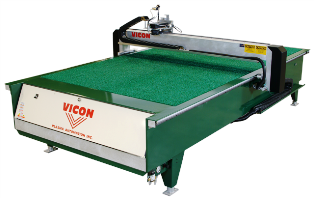

Vicon HVAC 510 Liner Cutting Table

Features & Benefits:
Economical, stand-alone machine dedicated to cutting duct liner in low and high volume shops
For users with existing plasma cutting systems that need additional liner cutting capability
Available in table sizes: 5'x10', 5'x20', 6'x10', 6'x20'
Patented systems to hold and cut duct liner. (Patent # 6,540,456)
Vicon HVAC Cutting Software with automatic liner downsizing
Synthetic table surface for smooth liner cutting
Dual rack and pinion drive on both axes for greater positioning accuracy
Aluminum gantry results in "low inertia" for greater part accuracy
Roller guides on both axes for greater rigidity, stability and accuracy
Traversing speed up to 2,000 inches per minute
Non-lubricating gears and bearings

Specifications:
Effective Cutting Area: (Standard) 5'x10' (Optional) 5'x20',6'x10',6'x20'
Material Capacity: 28 gauge to 1/2" thick plate
Machine Length: (Standard) 144"
Machine Width: (Standard) 90" (Optional) 102"
Table Height: 35"



Return to TOP



Vicon Vi-Stream Waterjet Liner Cutting Table

The Vi-Stream Waterjet Liner Cutting System combines the fastest, most accurate liner-cutting technology with Vicon's exceptional engineering and software development capabilities to produce huge volumes of liner including but not limited to Armaflex® and K-Flex® insulation.

This table is able to handle any type of liner and is offered with a standard 5’ x 10’ cutting area. Optional table sizes include 5’ x 20’, 6' x 10' and 6' x 20'.

With the patented Bar Code Scanning option, sorting problems are a thing of the past. Coordinating the flow of sheet metal and duct liner through the shop is made much simpler and faster. Sheet metal parts are scanned, and the machine is automatically programmed to produce the corresponding downsized duct liner. Superior true-shape nesting minimizes waste.

Vicon Vi-Stream Waterjet Liner Cutting Table

Features & Benefits:
Aluminum gantry contributes to high speed liner cutting capability with fast and accurate cornering and positioning
Size options of 5’ x 10’ to 6’ x 20’ cutting area
The table is constructed of a one-piece steel frame and has a tapered water basin with an operator accessible clean out
A special porous bed of water jet bricks provides a long-lasting and firm table cutting surface. It also disperses the high pressure jet stream and allows fast drainage.
Rugged drives are sized for minimizing system wear and tear while providing peek performance
Traversing speed up to 2,000 inches per minute
Dual rack and pinion drives provide uniform and accurate motion in the X and Y axis
The cutting head uses a position sensor to maintain proper working height. It lets the operator know when the height is correct by a LED indicator
A high pressure gauge located at eye level allows easy pressure monitoring for the table operator
In the X axis, an oversized 1" dual rack and pinion linear-drive provides machine longevity and durability
Our high pressure line runs overhead from the intensifier and maintains a low-profile design that will fit under an 8’ ceiling
All high pressure lines are supported by double isolation mounts
The clock spring design eliminates the need for swivel joints in the high pressure line. This greatly reduces the amount of maintenance needed for leakage problems. Swivels at the flex points would require more maintenance due to water leakage.
This machine can cut various types of liner including but not limited to Armaflex® and K-Flex® insulation



Return to TOP

Contact us about any of these Vicon Liner Cutting Tables.



VICON Plasma Cutting Tables

Vicon HVAC 510 Cutting Table

This rugged yet flexible plasma cutting machine is the solution for the optimal processing of HVAC duct fittings. Fast, clean and accurate, this CNC cutting system drastically reduces waste material and operating costs resulting in greater profitability.

Exclusive dual rack and pinion drives provide superb positioning accuracy for unmatched part quality. Material stops guide the operator for loading sheets eliminating error and material waste.

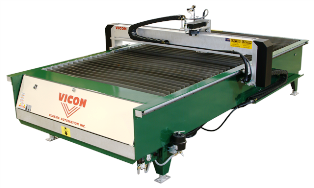

HVAC 510 Cutting Table

Features & Benefits:
Standard 5' x 10' cutting area with options for up to 6' x 20' cutting area to accommodate various shop requirements
Rugged drives are sized for minimizing system wear and tear while providing peak performance
All aluminum, low inertia gantry produces highly accurate parts and sharp corners and notches
One piece down draft table including built-in automatic CNC controlled exhaust fan circuit which is only on during cutting
State-of-the-art PC controller with color monitor for machine-side viewing of parts being processed
On screen status control provides efficient control and easy diagnostics
Torch choice flexibility for cutting a variety of materials from 28 gauge up to 1/2" plate
Traversing speed up to 2,000 inches per minute
Non-lubricating gears and bearings

Specifications:
Effective Cutting Area: (Standard) 5'x10' (Optional) 5'x20',6'x10',6'x20'
Material Capacity: 28 gauge to 1/2" thick plate
Machine Length: (Standard) 144" (Optional) 288"
Machine Width: (Standard) 90" (Optional) 102"
Table Height: 35"



Return to TOP



Vicon HVAC 520 Double Table Plasma Cutting System

Increase your productivity by at least 40% over the Model 510 with the Vicon 520 Double Table Plasma Cutting System! This system offers all of the same features and benefits as the standard Vicon 510 system... and more!

Finished parts are unloaded at one end of the machine while you continue cutting on the other, resulting in faster job completion.

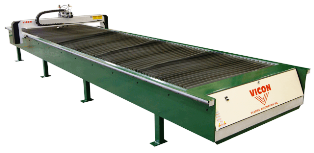

HVAC 520 Plasma Double Cutting Table

Features & Benefits:
Flexibility to cut two 10' sheets or single sheets up to 22'
Ideally suited to fully integrate with the Vicon Plasma Coil Feed System
Standard 5' x 10' cutting area with options for up to 6' x 20' cutting area to accommodate various shop requirements
Rugged drives are sized for minimizing system wear and tear while providing peak performance
All aluminum, low inertia gantry produces highly accurate parts and sharp corners and notches
One piece down draft table including built-in automatic CNC controlled exhaust fan circuit which is only on during cutting
State-of-the-art PC controller with color monitor for machine-side viewing of parts being processed
On screen status control provides efficient control and easy diagnostics
Traversing speed up to 2,000 inches per minute
Non-lubricating gears and bearings
Torch choice flexibility for cutting a variety of materials from 28 gauge up to 1/2" plate

Specifications:
Effective Cutting Area: (Standard) 5'x20' (Optional) 6'x20'
Material Capacity: 28 gauge to 1/2" thick plate
Machine Length: 288"
Machine Width: (Standard) 90" (Optional) 102"
Table Height: 35"



Return to TOP



Vicon HVAC 520-DL Plasma / Liner Cutting System

Versatility to the maximum! Cut metal or liner without any setup. Cut your metal on bed 1 and your liner on bed 2. You can also convert the machine to cut metal or liner on the entire 20 plus foot cutting area. The new Vicon patented process automates duct liner cutting, making it clean, dry, fast, smokeless and accurate. In addition, liner waste is greatly reduced adding to the increased profits.

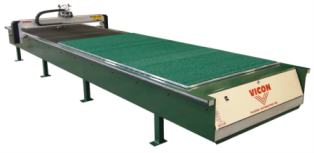

Vicon HVAC 520-DL Plasma / Liner Cutting System

OPTIMIZE WORK FLOW!
With the patented Bar Code Scanning option, sorting problems are a thing of the past. Coordinating the flow of sheet metal and duct liner through the shop is made much simpler and faster. Sheet metal parts are scanned, and the machine is automatically programmed to produce the corresponding downsized duct liner. Superior true-shape nesting minimizes waste.

Features & Benefits:
Combination machine cuts both sheet metal and duct liner with precision accuracy on the same table
For users that need additional sheet metal and liner cutting capability
Available in table sizes: 5'x10', 5'x20', 6'x10' and 6'x20'
Robust, one-piece steel frame for strength, stability and easy installation
Adjustable, quick-change torch holder - no tools are needed to change torch consumables
A ski cup protects the torch tip from contacting the material
Patented systems to hold and cut duct liner
Automatic liner cutting and plasma cutting selection from Vicon controller
Various torch options available for plasma cutting
Synthetic table surface for smooth liner cutting
Vicon HVAC Cutting Software produces two geometries - one for the sheet metal and another for the duct liner
Dual rack and pinion drive on both axes for greater positioning accuracy
Aluminum gantry results in "low inertia" for greater part accuracy
Roller guides on both axes for greater rigidity, stability and accuracy
Traversing speed up to 2,000 inches per minute
Non-lubricating gears and bearings

Specifications:
Effective Cutting Area: (Standard) 5'x20' (Optional) 5'x10',6'x10',6'x20'
Material Capacity: 28 gauge to 1/2" thick plate
Machine Length: 288"
Machine Width: (Standard) 90" (Optional) 102"
Table Height: 35"

Return to TOP



Vicon Fabricator-HD Plasma Cutting Table

The Solution for Fabrication and Job Shop Applications
The Vicon Fabricator-HD is a rugged yet flexible plasma cutting machine. It is the solution for the optimal processing of fabrication or job shop applications. Fast, clean and accurate, this CNC cutting system drastically reduces waste and operating costs resulting in greater profitability.

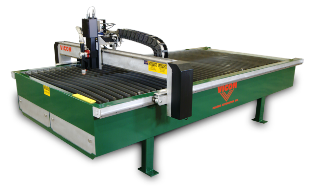

Vicon Fabricator-HD Plasma Cutting Table

Machine Electronics and Motion Controller
The solid-state controls and digital drives ensure fast response time and precise motion during the cutting process while the solid-state non-contact proximity sensors protect the drive train while producing your parts at the highest rate possible. Communications from the PC controller to the digital servo drives are through CAT-5 cables to ensure reliability within the system.

Plasma Cutting Torches
When choosing a plasma cutting table, there are many factors. Which need to be considered – part application, type and thickness of material to be cut, cut quality, system cost, and overall operating expense. In addition, there are a variety of plasma systems available to the market today – ranging from units capable of cutting light gauge to heavy plate in a variety of materials.

The Vicon Fabricator-HD can be custom designed for cutting based on your shop criteria as mentioned above. Our highly trained Vicon sales and technical specialists will eliminate the guesswork and engineer a system utilizing the “right” torch that will enable you to achieve the goals you are looking to accomplish through plasma technology. Through sample parts and time studies, you can see the end results before making a final decision.

At Plasma Automation, we incorporate only systems manufactured by industry leaders in plasma cutting technology. System warranty and service are impeccable and expert advice is always available through developed partnerships with leading torch manufactures.

Electronic Torch Height Control and Collision Protection
To enhance the efficiency of the torch system, the Vicon Fabricator-HD can be equipped with your choice of optional electronic torch height control, which maintains a precise cutting height of the torch during the piercing and cutting cycles to further enhance cut quality. A collision protection device is also available to protect your torch investment from damage in the event of collision with the material.

ViSoft Cutting Software Program for Windows
The ViSoft Software is menu-driven and user-friendly. Written and supported by Plasma Automation’s experienced team of in-house programming engineers, we are consistently enhancing and updating the Vicon program to continue to bring users the latest and greatest in functionality.

Features include a full array of shapes with user-defined libraries, Super Nest and common line cutting for the ultimate in material utilization, time saving DXF file importing including Auto Kerf and Auto Lead-In, and a true CAD sketch program…to name a few.

Features & Benefits:
Available 5’ X 10’ to 8’ X 40’ to accommodate various shop requirements.
The heavy duty one piece frame requires no assembly, thus reducing installation time, unlike rail-style machines that have to be assembled on site.
Torch choice flexibility for cutting a variety of materials ranging from gauge up to 1-1/4” plate.
Carriage capacity – two tooling stations to accommodate various cutting applications.
High-speed dual drives enable traversing speeds in excess of 2000 ipm while continuing to provide maximum torch cutting speeds.
Rigid, dual rack and pinion drives with digital motors product precise movement of the machined “solid as a rock” gantry. This results in exceptionally sharp corners and extremely accurate parts.
Sharp, crisp gantry motion coupled with a rigid, heavy duty table dependably maintains the tightest tolerances.
State of the art proximity switches and precision digital motors allow for trouble free operation and optimum performance for the life of the machine.
Vicon ViSoft Fabricator Programming and Cutting Software
On screen diagnostics for easy machine operation
Customized table stops allow for custom fixturing of your parts.
PC CNC Controller (3 Year Manufacturer’s Warranty)

Return to TOP



Vicon Elite Plasma Cutting Table

The Vicon Elite is an extremely rigid, accurate and versatile plasma cutting system. The dual precision worm gear drives with digital motors produce precise movement of the all aluminum tubular gantry. This, coupled with its sharp crisp motion, produces the most accurate parts that a plasma system can possibly provide. The end result is a high quality part with superb edge quality.

The gantry can accommodate multiple stations such as plasma torches, oxy torches, scribing tools and drill heads. Built in material stops, clean out doors and a machine status panel are just a few of the well thought out machine features that provide trouble free operation and optimum performance for years to come.

Vicon Elite Plasma Cutting Table

Machine Electronics and Motion Controller
The solid-state controls and digital drives ensure fast response time and precise motion during the cutting process while the solid-state non-contact proximity sensors protect the drive train while producing your parts at the highest rate possible. Communications from the PC controller to the digital servo drives are through CAT-5 cables to ensure reliability within the system.

Precision Cutting Torches
When choosing a precision plasma cutting system, there are many factors. Which need to be considered – part application, type and thickness of material to be cut, cut quality, system cost, and overall operating expense. In addition, there are a variety of precision systems available to the market today – ranging from manual gas consoles to automatic gas consoles, and units capable of cutting light gauge to heavy plate.

The Vicon Elite can be custom designed for cutting based on your shop criteria as mentioned above. Our highly trained Vicon sales and technical specialists will eliminate the guesswork and engineer a system utilizing the “right” torch that will enable you to achieve the goals you are looking to accomplish through plasma technology. Through sample parts and time studies, you can see the end results before making a final decision.

At Plasma Automation, we incorporate only systems manufactured by industry leaders in plasma cutting technology. System warranty and service are impeccable and expert advice is always available through developed partnerships with leading torch manufactures.

Electronic Torch Height Control and Collision Protection
To enhance the efficiency of each torch system, the Vicon Elite incorporates your choice of electronic torch height control, which maintains a precise cutting height of the torch during the piercing and cutting cycles to further enhance cut quality. A collision protection device is also added to protect your torch investment from damage in the event of collision with the material.

ViSoft Cutting Software Program for Windows
The ViSoft software is menu-driven and user-friendly. Written and supported by Plasma Automation’s experienced team of in-house programming engineers, we are consistently enhancing and updating the Vicon program to continue to bring users the latest and greatest in functionality.

Features include a full array of shapes with user-defined libraries, Super Nest and common line cutting for the ultimate in material utilization, time saving DXF file importing including Auto Kerf and Auto Lead-In, and a true CAD sketch program…to name a few.

Features & Benefits:
Standard 5' x 10' cutting area with options for up to 10' x 40' cutting area to accommodate various shop requirements.
High-tech, precision dual linear guiding and worm gear drives with digital motors produce precise movement of the machined "solid as a rock" gantry. This results in uncommonly precise cuts and superior round holes.
Sharp, crisp gantry motion, coupled with the rigid, heavy-duty table, dependably achieve the tightest tolerances.
High-speed dual drives enable traversing speeds in excess of 2,000 ipm while continuing to provide maximum torch cutting speeds.
State-of-the-art proximity switches and customized table stops allow for easy diagnostics, trouble free operation, and optimum performance for the life of the machine.



Return to TOP



Contact us about any of these Vicon Plasma Cutting Systems.

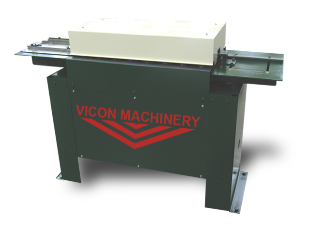

VICON V8 Roll Formers

Features:
Quietest machine in the industry
Eight forming stations for all roll sets - no opening roll on any roll set
Large, heavy duty bearings with inner races and grease fittings protect roll shafts and extend bearing life of the machine
Slide out shaft design allows for easy maintenance
Heavy duty 1” diameter stress proof roller shafts
Woodruff shaft keys for added strength and precise alignment
5 HP motor coupled to an industrial oil bath worm gear drive for longevity
Heavy duty roller chain drive, no belts
Heavy duty motor starter with thermal protection overloads

Return to TOP

Vicon V8 Pittsburgh Roll Formers

The V8 Pittsburgh Rollformer produces connections that exceed the standards set by SMACNA.
The V8 rollformer can be optionally tooled with either Right Angle Flange, 4-in-1 or Acme Lock Rolls.


V8-P20 Small Pittsburgh (Left Outboard-Female)20-28 Ga (5/16” pocket) 1” Notch (Speed) 90 FPM

V8-P18 Large Pittsburgh (Left Outboard-Female)18-24 Ga (7/16” pocket) 1-3/8” Notch (Speed) 90 FPM

V8-P16 Large Pittsburgh (Left Outboard-Female)16-20 Ga (7/16” pocket) 1-3/8” Notch (Speed) 45FPM

Pittsburgh:

Options:
Right Angle Flange Rolls
20-28 Ga. (1/4” - 7/16”)
16-24 Ga. (1/4” - 7/16”)

4-in-1 Rolls (22 Ga. - 28 Ga.) to produce clinch,
small standing seam, 7/16” flange, and male 1/4 edge

Acme Lock (Double Seam) Rolls
(20 Ga.-28 Ga.) or (16 Ga.-22 Ga.)

5 Gallon Sealant System for sealing Pittsburgh Lock (1 Gun)

5 HP Single Phase Motor (90 FPM)

3 HP Single Phase Motor (60 FPM)
(18 gauge and lighter)

Additional options available

Return to TOP

Vicon V8 Snaplock Roll Formers

The V8 Eight-Station Snaplock Rollformer produces connections that exceed the standards set by SMACNA.
The V8 rollformer can be tooled with either Button Punch Snaplock or Round Pipe Snaplock.



V8-SL20 Button Punch Snaplock: (Left Outboard-Female) Snaplock 20-28 Gauge,
(Right Outboard-Male) 1-3/8" Notch Male Button Punch 20-28 Gauge, 7/16" Notch (Speed) 90 FPM

V8-RPSL Round Pipe Snaplock: (Left Outboard-Female) Modified Reeves Lock 24-30 Gauge
(Right Outboard-Male) Modified Reeves Lock 24-30 Gauge (Speed) 90 FPM

Options:
Crossover System
Two machines tooled and positioned to allow for faster production rates of Pittsburgh & Snaplock.

V8 Button Punch Female Snaplock

V8 Round Pipe Female Snaplock


Return to TOP

Vicon V8 Slip & Drive Roll Formers

The Vicon V8 Slip & Drive Rollformer produces connections that exceed the standards set by SMACNA. This eight station rollformer is equipped with Flat "S" and Drive Cleat tooling inboard and can be equipped with your choice of outboard tooling such as Pittsburgh, Snaplock, 4-in-1, or Acme Lock Rolls depending on shop requirements. An optional high speed slitter is available to produce slips and drives from scrap metal, saving labor and material.



Reinforced Flat "S" Cleat
(22-28 Gauge, 3-3/4" strip)

Drive Cleat
(20-28 Gauge, 2-1/8" strip)

Options:
Slitter Attachment

5 Gallon Sealant System for sealing Pittsburgh Lock (1 Gun)

5 HP Single Phase Motor (90 FPM)

3 HP Single Phase Motor (60 FPM)

Additional options available



Return to TOP

Contact us about any of these Vicon V8 Roll Formers.



VICON TDX / TDF Roll Formers

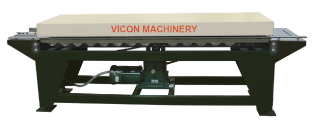

Vicon TDX-II TDX / TDF 12 Station Roll Former

The Vicon TDX-II 12 Station Rollformer is tooled to produce the T-25a transverse flange (four-bolt) connection. This profile has been evaluated by the SMACNA Testing and Research Institute and meets testing criteria as called for in SMACNA’s HVAC Duct Construction Standards.

The TDX-II Rollformer is equipped with one set of TDX-II tooling mounted left outboard standard and has one inboard and one outboard roll space available for optional tooling based on shop requirements.

Features & Benefits:
Twelve (12) Forming Stations
18 – 26 Ga. Material Capacity – no adjustments necessary between gauges
50 FPM Forming Speed
Large, heavy duty bearings with inner races and grease fittings protect roll shafts and extend bearing life of the machine
Slide out shaft design allows for easy maintenance
Heavy duty 1-1/4” diameter stress proof roller shafts
Woodruff shaft keys for added strength and precise alignment
Hardened infeed guides reduce wear from plasma cut edge
5 HP Motor coupled to industrial oil bath gear reducer for quiet longevity
Heavy duty roller chain drive, no belts

Click Here For TDX-II 12 Station Tooling Profiles

Return to TOP



Vicon TDX / TDF 16 Station Roll Former

The Vicon TDX 16 Station Rollformer is tooled to produce the T-25b transverse flange (four-bolt) connection. This profile has been evaluated by the SMACNA Testing and Research Institute and meets testing criteria as called for in SMACNA’s HVAC Duct Construction Standards.
The TDX Rollformer is equipped with one set of TDX tooling mounted left outboard and has one inboard and one outboard roll space available for optional tooling based on shop requirements.

Features & Benefits:
Sixteen (16) Forming Stations for superior quality
18 – 26 Ga. Material Capacity – no adjustments necessary between gauges (16 Ga. option available)
70 FPM Forming Speed
Independent adjustment at each forming station with pre-set spring tension
Large, heavy duty bearings with inner races and grease fittings protect roll shafts and extend bearing life of the machine
Slide out shaft design allows for easy maintenance
Heavy duty 1-1/4” diameter stress proof roller shafts
Woodruff shaft keys for added strength and precise alignment
Hardened infeed guides reduce wear from plasma cut edge
7.5 HP Motor coupled to industrial oil bath gear reducer for quiet longevity
Heavy duty roller chain drive, no belts





Click Here For TDX/TDF 16 Station Tooling Profiles

Return to TOP

Contact us about any of these Vicon TDX / TDF Roll Formers.



Contact Us About ANY of These Vicon Machines. T

cincinnati precision machinery
