Tin Knocker Machinery | TAAg machinery

• Foot Operated
• Water cooled (prep)
• Swivel Arms
• Swivel Foot Pedal
• Universal Reversible Double End Arms, 90 & 22 Degrees
• Vertically Adjustable Lower Arms
• 6 Point Heat Selector

TK 1524 Spotwelder Specifications:

• Capacity: 2 Pieces of 16 Ga. Mild Steel
• Arms: 15 KVA x 24" / 1 3/4" Dia.
• Electrics : 230/1/60
• Max. Space Between Arms: 5-11"
• Approx. Weight: 750 lbs.
• 1" Quick Release Tip Holders w/ No. 2 Morse Tape Sockets ,
  (2) No. 2 Conical, 5/8" Dia. Alloy Tips

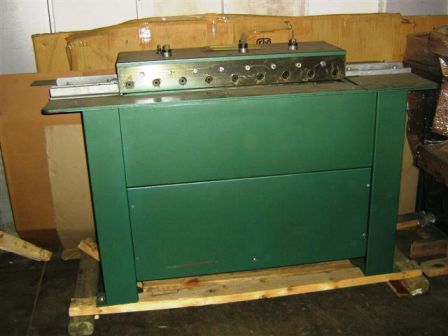

Tin Knocker Button Lock Model TK 20

Tin Knocker / Taag Machinery Button Lock Rollformer Model TK 20

Tin Knocker's 9 Station Button Lock Rollformer means no hammering over of edges. The Button Lock roll former model TK20 comes with "male" tooling on one side and "female" on the opposing side. The Tin Knocker button lock roll former is a fast, effective way of marrying 20 to 26 gauge duct sections.

Specifications for Tin Knocker - TAAG Machinery Model TK20 Buttonlock Roll Former:

• Capacity: 20-26 Gauge
• Motor: 230/1/60
• Lube: Centralized
• Speed: Approx. 60 FPM
• Dimensions: 60" x 30" x 42" (152mm x 762mm x 1067mm)
• Weight: 820 lbs. (approx.)

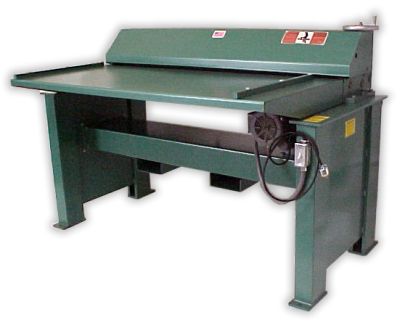

Tin Knocker Duct Beader

Tin Knocker 60" x 16 Ga. adjustable Duct beader Produces SMACNA approved beads in a fraction of the time it takes to cross brake. A one man operation, this heavy duty duct beader comes with five (5) sets of bead tooling that can be located anywhere over the 60" working length. Tooling, if broken or damaged, is replaceable without the requirement of replacing an entire cross shaft. Beads are adjustable in depth to 3/16" deep. This Tin Knocker Duct Beading Machine has a powered exit support roll to ensure no material hang-up.

Specifications for Tin Knocker Duct Beaders:

• Capacity: 16 Ga. Mild Steel (Galvanized) x 60" (1.5mm x 152.4cm)
• Motor: 1 H.P.,115v, Single Phase, 60 Hz Standard (230/1/50 available)
• Dimensions: Approx. 80"L x 43"W x 34" Passline Height (203cm x 109cm x 86cm)
