Norlok | Clinching/Fastening Systems | Norlok Power Table

Norlok clinching and fastening machines -  sheet metal clinchers

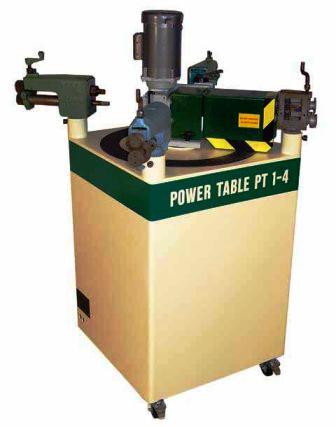

Norlok Power Table

Norlok Power Table

The Norlok Power Table is an easy to use, affordable way of driving any one of up to four hand rotary machines from standard 115V power.
The power table features a quick change, spring loaded drive shaft with ½” female square drive connection, foot pedal operation and complete portability. The power table is available in two versions:40 RPM fixed speed or 20-60 RPM variable speed.

Features of the NORLOK power table :
¼ HP (PT) or ½ HP (PTV) motor and gear box
All the power needed for trouble-free operation
• Fixed or Variable Speeds
Choose the model that is right for you
• Quick change spring loaded drive shaft
Change power drive to any tool in seconds
• Convenient work height
Reduce operator fatigue for more production
• Solid, portable stand
Easy to move yet stays in place with locking
casters
• Foot pedal operation
Leave both hands free to guide parts
• Easy to reach reversing switch
Moves with drive position for operator
convenience
• 115V power requirements
Plug in to any standard power outlet
• Built-in stand storage
Keep all your accessories in one place

SPECIFICATIONS – Norlok Power Table
Speed: Model PT 1-4 40 RPM (fixed)
Model PTV 1-4 20-60 RPM (variable)
Torque: 270 in-lbs
Drive: Model PT 1-4 ¼ HP
Model PTV 1-4 ½ HP
Coupling: ½” Square female
Coupling Distance: 4-1/2” (6-1/2” compressed)
Tool Position: 4 @ 90°
Power Requirements: 115v (60 cycles single phase)
5A (Model PT1-4)
10A (Model PTV1-4)
Table Height: 37”
Tool Post Height: 41”
Tool Post Size: Ø1-5/8” (Internal)
Width: 27” (square)
Weight: 475 lbs
Casters: Ø3” (with brakes)
