ERmaksan | ERMAK USA Shears

Ermaksan is one of the emerging companies in the changing market of Sheet Metal Working Machinery. With 40 years of experience dedicated to manufacturing excellent press brakes and shears.

Ermaksan is becoming one of the world’s leaders in the sheet metal machinery manufacturing.

Ermak, our main brand name reflects the leading technology and a tradition of excellent products. Ermak is well known in the world market and has been for several decades. The productivity and reliability of our machines is exceeded only by their affordable prices.

Ermak Model HGD 10' X 3/8" Swing Beam Shear

Ermaksan Model HGD Hydraulic Swing Beam Shear

Standard equipment on an Ermak Hydraulic Swing Beam Shear

  • mono block, welded steel frame rigid to deflection moment and high tensile with ST44 A1 material
  • ELGO 9521 NC controller
  • one-piece honed and chrome plated double acting powerful cylinders,
  • high quality top and bottom blades - bottom :4 Top:2 cutting sides
  • easily adjustable blade gap adjustment system from single point
  • bosh - rexroth hydraulic system
  • high pressurized silet atos pump
  • fast and powerful back gauge with 1000mm distance, moving by ballscrewed shafts, with automatic swing away feature
  • avaiding sheet sliding during cutting action, powerful hold downs with maximum performance
  • cutting length adjustment allowing stroke adjustment for shorter sheets and shorten the cutting time
  • roller bearings on the table to help placing sheet to machine easily
  • front support arms with ruler and flip-Stop
  • foot pedal available for single or continuous cutting
  • cutting line illumination
  • sick backside protections

Optional equipment on these Ermak Swing Beam Shears

  • ERMAK CNC HGD automatic blade GAP and automatic target stroke adjustment according to material, thickness and length by Cybelec DNC61G cut
  • pneumatic sheet support system
  • pneumatic sheet unloading system
  • automatic stacking system
  • laser cutting line
  • finger protective light curtain
  • oil collant
  • longer front arms or squaring arm
  • angular gauge

These Ermak Hydraulic Swing Beam Shear Model HGD come with the ELGO P9521 Control. Specifications for this Delem Control listed below.

  • manual operation mode
  • single operation mode
  • ability to make cutting program
  • inch/mm conversion
  • 99 step program
  • parametric adjustments

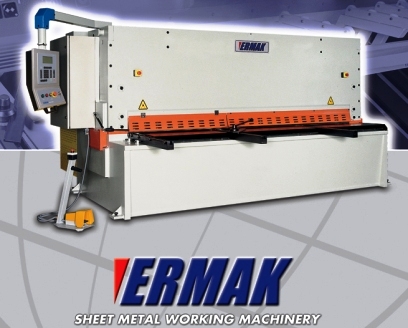

Ermak CNCHVR Hydraulic Variable Rake Guillotine Shear

Ermaksan model CNCHVR Series Hydraulic Variable Rake Guillotine Shear

ERMAK CNCHVR angle adjustable hydraulic guillotine shears are stong and easy to use machines which are able to cut any type of sheet with the best quality and speed.

Machines could be programmed easily with the use of dialog programs on CYBELEC control units. When the type, thickness and length of the sheet is entered to the controller, machine calculates and adjusts blade gap adjustment, backgauge distance, cutting length and cutting angle automatically.

Cutting angle adjustment is done automatically according to sheet thickness, so during cutting thin sheets, the shortest stroke is used.

Standard Equipment on these Ermak CNC HVR Hydraulic Variable Rake Guillotine Shear

  • Mono block, welded steel frame rigid to deflection moment and high tensile with st44 a1 material
  • fast and powerful back gauge with 1000mm distance, moving by ballscrewed shafts, with automatic swing away feature
  • avoiding sheet sliding during cutting action, powerful hold downs with maximum performance
  • roller bearings on the table to help placing sheets to machine easily
  • cybelec dnc 61 G cut controller
  • honed hydraulic cylinders and chrome coated pistons
  • high quality top and bottom blades, Bottom : 4 Top : 2 cutting sides
  • hydraulic operated blade gap and angle adjusting system with CNC control
  • bosch - rexroth hydraulic system
  • high pressurized silent ATOS pump
  • front support arms with ruler and flip-Stop
  • foot pedal available for single or continuous cutting
  • cutting line illumination and shadow line
  • 350mm throat depth
  • side and rear guards
  • automatic serial cutting, flying cut
  • cNC controlled automatic angle adjustment stroke adjustmen, hydraulic blade gap adjustment

Optional Equipment for Ermak CNC HVR Hydraulic Variable Rake Guillotine Shear

  • pneumatic sheet support system
  • angular front gauge
  • 500mm throat depth
  • oil collant
  • laser cutting line
  • finger protective light curtain (catagory 4)
  • longer front arms or squaring arm
  • automatic stacking system
  • dynamic backgauge with acservo motors
  • X1 , X2 backgauge for the angular cutting
  • stainless steel cutter
