ERmaksan Press brakes
Ermaksan is one of the emerging companies in the changing
market of Sheet Metal Working Machinery. With 40 years of experience
dedicated to manufacturing excellent press brakes and shears.
Ermaksan is becoming one of the world’s leaders in the sheet
metal machinery manufacturing.
Ermak, reflects the leading technology and a tradition of excellent
products. Ermak is well known in the world market and has been for several
decades. The productivity and reliability of our machines is exceeded
only by their affordable prices.

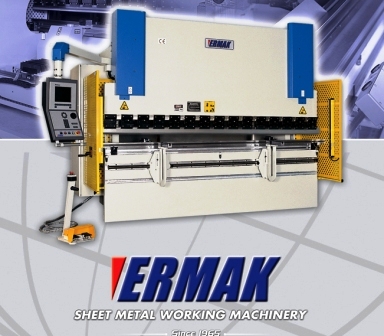

Ermak Model CNCHAP 10' X 176
Ton Press Brake
Ermak CNCHAP 3 Axis Synchronized Hydraulic Press Brake
Standard Equipment on an Ermak Hydraulic Press Brake :
- Mono block, welded steel frame rigid to deflection moment and high
tensile with ST44 A1 material
- Delem controller,
- Y1 + Y2 + X axis
- synchronization control of Y1 + Y2 axis by± 0.01 accuracy
linear encoders is provided by means of hydro - electrical technique,
with servo valves
- AC motorized back gauge system with ball screwed shaft in X-axis,
analog dynamic, fast servo controlled back gauge
- hydraulic system by proportional valve system with the brands bosch-Rexroth
or Hoerbiger,
- high accuracy heidenhain - givi measure linear encoders,
- electrical panel with cooling system, designed to meet CE Standards
and composed of automation and electrical equipments with
- automatic tonnage adjustment, with proportional valves
- getting the required angle in one step without trial-Error method
by entering material type, width, length and thickness,
- automatic adjustment of back gauge position according to the bending
program
- bending sequence
- automatic calculation of required stroke for the required bending
angle
- harmony of used tooling and bending part
- storing the programs in memory and recalling
- hardened, grinded and standard segmented (835mm) top and bottom
tooling system. Bottom tool with four v-dies in dimensions of 60X60
- amada promecam clamping system with quick release
- user-friendly, moveable and ergonomic control panel carrying all
buttons,
- light guard positioned at the back side of the machine
- multiple point parallelism adjustable back gauge bar, back gauge
fingers with the accuracy of 0.01
- front support arms with t-slot and mM/Inch scale
- 400 MM throat depth
- conforming to eU machine safety directives and CE regulations
Optional Equipment on an Ermak Hydraulic Press Brake :
- Manual WILA Anti-Deflection system
- R axis
- motorized wila anti-Deflection system which operates automatically
according to tonnage applied
- front light guard system
- laser protection : laser protection system for die area, LASER SAFE
LZS, AKAS II , (camera based system) sick v4000, DFS LASER
- pneumatic top tool holding system
- hydraulic top and bottom tool holding system
- sliding front arms with bearing rollers
- hydraulic oil coolant
- automatic slide greasing system
- special throat depth (500,600 and 750 MM)
- special top and bottom tool
- tandem application
These Ermak Hydraulic Press Brakes come with Delem CNC Controls. The
DelemDA6XW controllers are Windows based like a PC. It is possible to
make data transfer and back-up operation between PC and controller through
network connection. Delem controlled machine could be controlled from
a PC and watched while it is running online. Specifications for this
Delem Control listed below.
- Controls up to 6 Axis
- Tool Catalog Built In
- Material Catalog
- Draw Program Mode
- Offline Programming Software
- 2 USB Ports

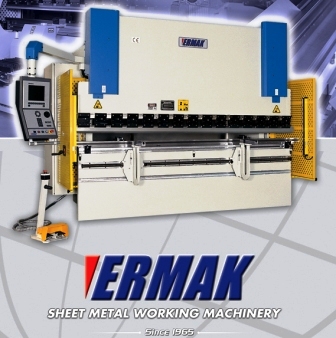

ERMAK CNCAP Series Syncronized
Hydraulic Press Brake
General Specifications for this Brake Press:
- The precision repeatability performance of these Press Brake machines
is achieved by synchronizing the hydraulic cylinders with the use
of advanced proportional valve control,
- with automatic indexing of the exes at the start of running process,
calibration is provided,
- Data inputs of material thickness, type and length through a user
friendly software enables the control to calculate and provide the
following:
- determination of bending power required for each stroke,
- graphical display of the unfolding of bending parts,
- postitioning of the back gauge for each step of the bending
program,
- determination of the most practical bending sequence
- automatic calculation of top beam stroke for bending angle,
- adaption condition of tools and work pieces,
- graphical display of potential interferences between material,
tools and the machine,
- storage of programs with alpha-Numerical names and recalling,
- programmable bending speeds,
- manuel, semi-Automatic or automatic working modes,
- upper beam tilting for conical bending.
Standard Equipments for this ERMAK CNCAP Series
Syncronized Hydraulic Press Brake:
- mono block, welded steel frame rigid to deflection moment and high
tensile with ST44 A1 material.
- four axis (Y1, Y2, X, R)
- standard graphic controllers can be selected from : cybelec mod
eva 10 s color graphics with PC 1200, delem dA66W 2D with colored
graphics, esa kvara duemilla 2003
- back gauge system with x+R axis driven by aC servo motors on lenear
bearings
- original BOSCH-REXROTH or HOERBIGER servo hydraulic system
- wila manual bottom table anti-deflection system
- electrical panel with cooling system, designed to meet CE standards
and composed of automation and electrical equipments with SIEMENS
brand,
- hardened and grinded standard sectioned top and bottom toos (835mm).
Bottom tool is in 60X60 dimensions and 4 V-Die
- amada procecam type tool holding system with quick release
- ergonomic, user friendly, moveable control panel carrying all buttons,
- back light guards (category-4)
- synchronization of y1 + Y2 axis is provided by linear encoders with
0.01 tolerances,
- back gauge fingers move along linear bearings with 0.01 tolerances,
- foot pedal conforming to CE regulation,
- front arms with t slot and MM/Inch rulers,
- throat depth 400 MM.
- light guard (category-4)
Optional Equipment:
- Graphic controllers : cybelec modEva15 3D, cybelec modEva 12 3D
, delem 69W 3D
- z1 + z2 axis,
- x1 + x2 axis,
- r1 + r2 axis,
- motorized wila anti-Deflection system which operates automatically
with CNC unit according to tonnage applied,
- front light guard system
- pneumatic top tool holding system,
- hydraulic top and bottom tool holding system,
- front arms with CNC control (AP3 + AP4 axis),
- sliding front arms with bearing rollers,
- hydraulic oil coolant,
- automatic slide greasing system,
- special trhoat depth (500,600 or 750mm),
- special top and bottom tools
- software options delem v-Bend, v DXF modul, v-DRAW)
- delem profile on windows (profile W),
- SICK C4000 advanced finger protections 14mm (easy programable sick
soft with PC : blanking, reduced resolution, Cascade working ect)
- tandem application
ERMAK SPEEDERMAK HIGH SPEED SYNCHRONIZED
HYDRAULIC PRESS BRAKE
New generation press brake Speedermak with max. speed,
performance and productivity achieves the goals of mass production.
Speedermak moves more at high speeds, its stopping distance and speed
alteration points distances are less according to the ordinary units.
Also max. safety is provided by Laser and special safety
equipments without making a concession at productivity. The operator
can hold the steel near to the die confidently while the punch approaching
at a high speed when working iwth Laser Safety System installedSpeedermak.
Hands and fingers are protected by continuously activated laser senses
just under the punch area. If Laser Safe controller (LZS-003 or PCSS
series) determines any obstacle, instantly stops the movement of punch
and thus punch never touches to the obstacle. In comparison to working
with conventional light barriers or double hand buttons, Laser Safe
protection system gives the possibility of working more safety and high
productivity by means of reacting both high sensitive and speedy. All
inputs and outputs suit to CE safety regulations as well.
General Specifications for this
ERMAK SPEEDERMAK HIGH SPEED SYNCHRONIZED HYDRAULIC PRESS BRAKE:
- high speed, high performance press brakes : the precision repeatability
performance of these Press Brake machines is achieved by synchronizing
the hydraulic cylinders with the use of advanced proportional valve
control,
- with automatic indexing of the axes at the start of running process,
calibration is provide,
- data inputs of material thickness, type and length through a user
friendly software enables the control to calculate and provide the
following:
- determination of bending power required for each stroke,
- graphical display of the unfolding of bending parts,
- positioning of the back gauge for each step of the bending program,
- determination of the most practical bending sequence
- automatic calculation of top beam stroke for bending angle,
- adaptation condition of tools and work pieces,
- graphical display of potential interferences between material,
tools and the machine,
- storage programs with alpha-Numerical names and recalling,
- programmable bending speeds,
- manual, semi-Automatic or automatic working modes,
- upper beam tilting for conical bending.
PressBrake Standard Equipments:
- mono block, welded steel frame rigid to deflection moment and high
tensile with sT44 A1 material.
- four axis (Y1, Y2, X, R)
- high speed free fall movement (200mm/sec), high speed up movement
(200mm/sec), high speed pressing movement (20mm/sec)
- standard graphic controllers can be selected from: Cybelec Mod eva
10 S color graphics with PC 1200 , Delem DA66W 2D with colored graphics
- sliding front arms with bearing rollers,
- back gauge system with x+R axis driven by AC Server motors on linear
bearings
- original BOSCH-REXROTH or HOERBIGER servo hydraulic system
- hydraulic oil coolant
- motorized wila anti-Deflection system which operates automatically
with CNC unit according to tonnage applied
- wila manual bottom table anti - deflection system
- electrical panel with cooling system, designed to meet CE standards
and composed of automation and electrical equipments with SIEMENS
brand,
- hardened and grinded standard sectioned top and bottom tools(835mm).
Bottom tool is in 60X60 dimensions and 4 V-Die
- amada promecam type tool holding system with quick release
- ergonomic, user friendly, moveable control panel carrying all butons,
back light guards (category-4)
- synchronization of y1 + y2 axis is provided by linear encoders with
0.01 tolerances,
- back gauge fingers move along linear bearings with 0.01 tolerances,
- foot pedal conforming to CE regulation,
- front arms with t slot and MM/inch rulers,
- throat depth 400 MM
- laser safety system dual beam for the high speed safety CNC - PLC
for the muting points, speed information's or bending modes
Optional Equipments for this Press Brake Machine:
- graphic controllers: cybelec modEva15 3D, cybelec modEva12 3D, Delem
69W 3D
- z1 + z2 axis,
- x1 + x2 axis,
- r1 + r2 axis,
- laser angle measurement system, with data m cobra lazer check system
- pneumatic top tool holding system.
- hydraulic top and bottom tool holding system,
- front arms with CNC control (AP3 + AP4 axis),
- automatic slide greasing system,
- special throat depth (500, 600 or 750 MM)
- special top and bottom tools
- special top and bottom tooling system with wila products
- software options delem v-Vend, V DXF modul, v-Draw)
- delem profile on windows (profile W) offline software
|
*
**Specials**
