HVAC Coilines by Engel Industries | Coil Lines | coil processing

Engel Industries Coiline Logo

Engel Full Coiline

Engel Industries  Full Coiline

Engel Industries provides the fastest Automated Duct Systems Available in operation worldwide-
from coil to duct "L" sections averaging every 15 seconds and a full wrap duct every 30 seconds.
The highest quality, most productive & cost efficient coil line (duct manufacturing) machines today.
Individual components have provided the features that save you time and money.
From underfed cradles through the hydraulic Unitized Compact Coiline®, Pittsburgh/Snap Lock, Cleat Forming TDF® (Transverse Duct Flange), Lin-o-matic with extruded glue system and either an "L" or full-wrap brake, Engel's System has the features you need.
Engel's coiline system is controlled by the P.C. based control with download capability.
Engel's "building block" concept allows you to purchase a coiline starter system, a complete coiline system or individual components to complete any existing partial coil line system.

Basic components for Engel's Full 5' / or 6' Coiline:

  • Rod Grid Cradles including coil drive assembly
  • powered underfed infeed guide assembly
  • compact coiline (Front end)
  • transfer system for pittsburgh lock and snap lock
  • 90° transfer and feed table
  • dual head cleat edge forming machine
  • dual head tDF© roll form unit
  • lin-O-Matic insulation unit
  • full wrapper automatic brake system

Engel's Standard Fold & Shear Coiline

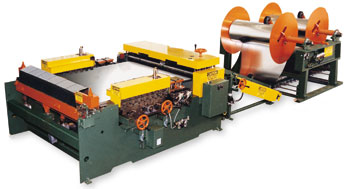

Engel  Industries Standard Fold and Shear Coiline

Engel's Standard Fold and Shear Coiline combines production of blanks from coil stock with the additional capabilities of straightening, beading and bending duct sections. The Coiline can produce blanks for TDF® and S & Drive ductwork.

The M-516-IIFS-C Fold & Shear Coiline System with optional CEF includes four (4) Cradles and comes standard with:

  • equipped straightener,
  • ring type beader,
  • shearing and bending station,
  • notcher,
  • dual head cleat edge roll former
  • and a P.C. based control with Engel's proprietary software.
  • A printer and an office link are available for downloading.
  • Male Button Punch feature is also available.

The Fold & Shear is fully hydraulic with a self-contained hydraulic power unit and integral tank reservoir mounted safely within the rigid side plates. With the minimal floor space requirement of this system, with cleat edges is approximately 34-1/2' x 9' 5" with four(4) cradle assemblies. Without cleat edges is approximately 26' 6" x 9' 5" with two(2) cradle assemblies, the Fold & Shear can be installed in most shops or directly at the job site. The Fold and Shear, when combined with an Engel Free Standing rollformer produces duct sections by one(1) man with two(2) machines.

The Engel Industries Fold & Shear Coiline can be used as the beginning of a Fully Automatic Duct Fabrication System for the production of lined or unlined TDF® or S & Drive ductwork. Maximum capacity is 5' (1524mm) 16 gauge (1.5mm) galvanized steel. Minimum wrapper size is 6"x 6" (150mm x 150mm) with maximum only limited by physical handling capabilities.

Return to TOP

Engel Compact II Coiline

Engel Industries Compact II Coil line

Engel's Coiline II blanking, notching and beading system can be either a stand alone system or the start of a complete automatic fabricating system with TDF®. Engels straightener, with four large diameter rolls, will remove coil set from either under or overfed coils. The coil line system is fully hydraulic including a heavy duty dual cylinder shear with bronze gibs. The low profile hydraulic notchers will notch for S & Drive, TDF®, Pittsburgh or Snap Lock. (You can add the "flip of the switch" option to switch from TDF® to S & Drive, or Pittsburgh.) Ring type beading is in accordance with SMACNA standards. The self-contained hydraulic power unit, with its reservoir tank, is mounted safely within the solid side plates.

A PC based controller, with proprietary software, controls coiline machine functions and can accept down loading from an IBM compatible in-house computer. The control is expandable to handle a complete automatic duct fabricating system. The Engel Compact Coiline II includes 4 drop-in cradles with a maximum capacity of 15,000 lbs. per station. The coils are driven by Engel's M-CDA-15-UF coil drive assembly with a direct coupled drive. You can order any of Engel's optional cradle systems. This system will process 5' (1524 MM) galvanized steel into blanks for your plasma cutting machine or notched blanks for "L" Section or full wrap ductwork. Cut-to-length accuracy is +/- .020" (+/- 0.5MM).

FEATURES of the Engel Compact Coiline II :

  • Capacities: 30 to 14 gauge, and up to 72" depending on model.
  • Straightening Unit: Heavy duty straightening rolls are 4-1/4 inch diameter
  • In Line Slitting: Available upon request.
  • Low Profile Notching: Dies are adjustable from S & Drive to TDF® with the flip of a switch. Notcher dies are mounted in precision Die sets.

Return to TOP

Engel Compact III Coiline

Engel Coiline compact 3

Engel uses a Micro-Processor Controller, with software which controls machine functions. The M-III516UC Compact III Coiline® System includes two(2) drop-in cradles with a maximum capacity of 10,000 lbs. per station. You can order any optional cradle system including top-of-the-line, low profile cradles or Engel's Multi-Level Cradles. The system will process 5' (1524 mm) galvanized steel into blanks for your plasma machine or notched blanks for "L" Section or Full Wrap ductwork. Cut-To Length accuracy is +/- .020" (+/- 0.5 mm), 60 FPM High Speed.

Engel's Coiline®III blanking, notching and beading system incorporates all of the functions and many of the features of our Unitized Compact Coiline® in a lower priced package. The coil line system can either be a stand alone or the start of a fully Automatic Duct Fabricating System with TDF®. Engel's Straightener, with four (4) large diameter rolls, will remove coil set from either under or overfed coils. The Coiline III system is fully hydraulic including a heavy duty cylinder shear with bronze gibs. The low profile notchers will notch for S&Drive, TDF®, Pittsburgh or Snaplock. Ring type beading is in accordance with SMACNA Standards. The self-contained hydraulic powered unit, with its reservoir tank, is mounted safely within the solid side frame plates.

Specifications for Engel's Coiline III :

  • 5HP Electrics
  • 220/1/60 Option
  • 208/230/460-3-60 Standard
  • 4" Diameter Rolls
  • Single Notch & Shear
  • Standard with M-350-PFD Controller
  • Hydraulic Servo Driven

Return to TOP
