akyapak Powered Rolls

Akyapak powered rolls

Akyapak Powered Rolls

Since 1962, Akyapak Machinery has been producing 3/4 Rolls hydraulic/mechanic Plate Bending Machines, hydraulic/mechanic Profile Bending Machines, Pipe/Tube Bending Machines with mandrel and hydraulic/mechanic Bordering Machines. Now Akyapak has a new builded factory with 10.000 sqm closed area in order to improve its well known quality. Akyapak invests in technology for future with 150 well experienced, specialist staff and produce about 2000 machines yearly.

Akyapak powered rolls

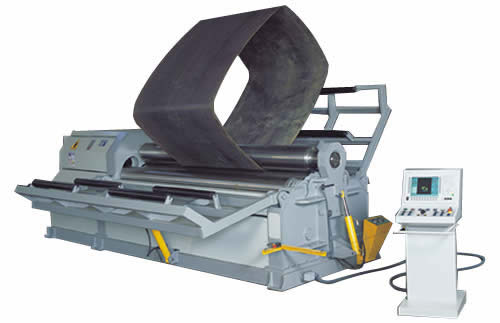

Akyapak powered rolls Model ASM-S

Standard Features of the powered rolls by Akyapak Model ASM-S:

  • Top and pinch rolls drive via electric motor and gear reducer
  • Forward and reverse rotation controlled by foot pedal or push button
  • Top roll release for ease of rolled part removel with electronic interlock for operator safety
  • Powered adjustment of formning roll, operated by push button on operator's console
  • Pinch roll adjustment via hand wheel
  • Linear scales for precise position of pinch and forming rolls
  • Pinch and forming rolls incline for cone rolling
  • Emergency stop cable around perimeter of machine for operator safety
  • Machine controls mounted in a movable operator's console
  • All controls are low voltage - Electrics: 440/360/ or 220/3/60

Optional Features for AKYAPAK Powered Rolls Model ASM - S powered rolls:

  • Cone rolling attachment
  • Hardened rolls
  • Powered pinch roll adjustment
  • Digital readout for pinch roll
  • Digital readout for forming roll
  • Extended rolls for section bending
  • Section bending dies

Models available of AKYAPAK hydraulic roll machines :

  • Akyapak AHS 4 Roller Hydraulic Bending Machine
  • Akyapak AH 3 Roller Hydraulic Bending Machine
  • Akyapak ASM-S 3 roller asymmetrical bending machine
  • akyapapk aSM - y 3 roller asymmetrical bending machine
  • Akyapak aSM 3 roller asymmetrical bending machine
  • Akyapak aS 3 roller asymmetrical bending machine
  • Akyapak a 3 roller asymmetrical bending machine
  • Akyapak aTR 2 roller bend. machines for high production
  • akyapak aBM CNC tube bending machines
  • Akyapak APK profile bending machines 30-35
  • Akyapak APK profile bending machines 40-45
  • Akyapak aPK hydraulic profile bending machine 180-240-300-360
  • Akyapak APK hydraulic profile bending machine 101-121
